Details
CLSG-Series, High Tonnage Cylinders
Capacity: 50 - 1000 ton
Stroke: 50 - 300 mm
Maximum Operating Pressure: 700 bar
• Integral stop ring provides piston blow-out protection
• Baked enamel outside finish and plated pistons provide
superior corrosion protection
• Interchangeable, hardened grooved saddles are standard
• Base mounting holes are standard on all models
• Plunger wiper reduces contamination,
extending cylinder life
• Single-acting, load return.
All CLSG-Series cylinders
are equipped with bolt-on
removable grooved saddles

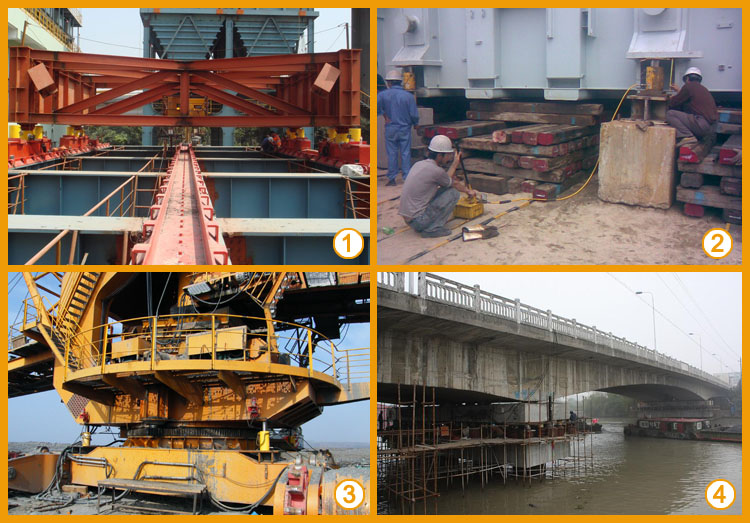

The Single-Acting Heavy Lifting Solution with Integral Stop Ring

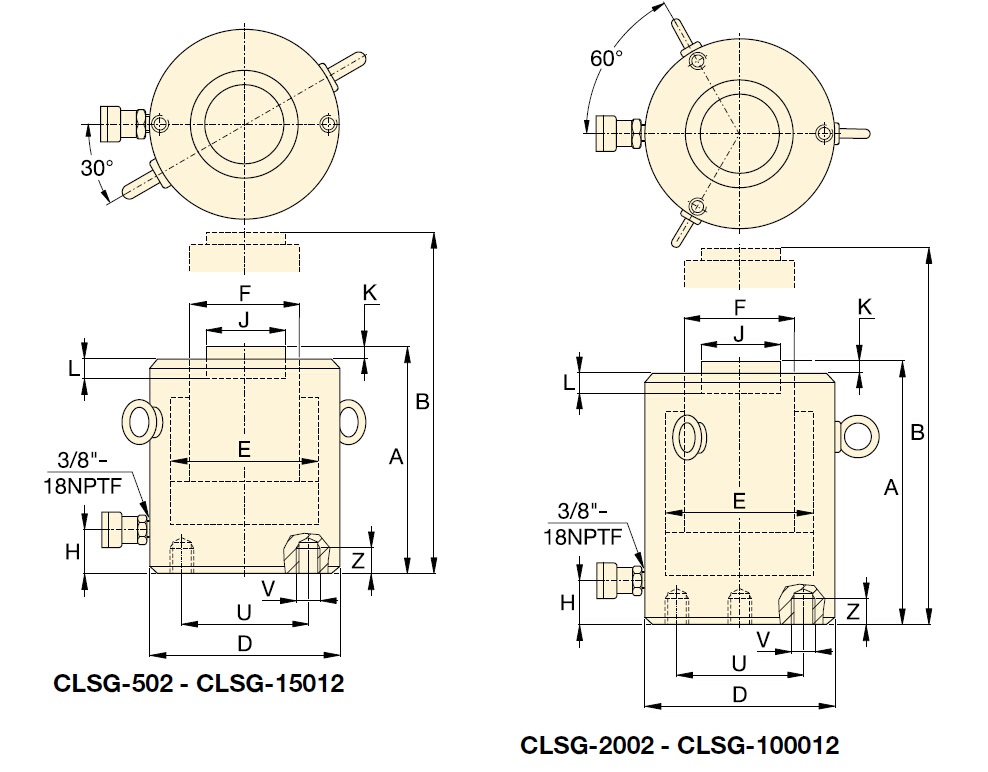

| Model No. |
Capacity ton (kN) |
Stroke (mm) |
Collapsed Height A (mm) |
Extended Height B (mm) |
Outside Dia. D (mm) |
Bore Dia . E (mm) |
Effective Area (cm2) |
Oil Capacity (cm3) |
Plunger Dia. F (mm) |
Weight (kg) |
| CLSG-502 | 50 (539) | 50 | 162 | 212 | 130 | 99,0 | 77,0 | 385 | 70,0 | 17 |
| CLSG-504 | 100 | 212 | 312 | 130 | 99,0 | 77,0 | 770 | 70,0 | 20 | |
| CLSG-506 | 150 | 262 | 412 | 130 | 99,0 | 77,0 | 1155 | 70,0 | 23 | |
| CLSG-508 | 200 | 312 | 512 | 130 | 99,0 | 77,0 | 1540 | 70,0 | 27 | |
| CLSG-5010 | 250 | 362 | 612 | 130 | 99,0 | 77,0 | 1924 | 70,0 | 31 | |
| CLSG-5012 | 300 | 412 | 712 | 130 | 99,0 | 77,0 | 2309 | 70,0 | 34 | |
| CLSG-1002 | 100 (929) | 50 | 182 | 232 | 165 | 130,0 | 132,7 | 664 | 95,0 | 19 |
| CLSG-1004 | 100 | 232 | 332 | 165 | 130,0 | 132,7 | 1327 | 95,0 | 29 | |
| CLSG-1006 | 150 | 282 | 432 | 165 | 130,0 | 132,7 | 1991 | 95,0 | 40 | |
| CLSG-1008 | 200 | 332 | 532 | 165 | 130,0 | 132,7 | 2655 | 95,0 | 50 | |
| CLSG-10010 | 250 | 382 | 632 | 165 | 130,0 | 132,7 | 3318 | 95,0 | 61 | |
| CLSG-10012 | 300 | 432 | 732 | 165 | 130,0 | 132,7 | 3982 | 95,0 | 71 | |
| CLSG-1502 | 150 (1390) | 50 | 196 | 246 | 205 | 159,0 | 198,6 | 993 | 114,0 | 39 |
| CLSG-1504 | 100 | 246 | 346 | 205 | 159,0 | 198,6 | 1986 | 114,0 | 52 | |
| CLSG-1506 | 150 | 296 | 446 | 205 | 159,0 | 198,6 | 2978 | 114,0 | 65 | |
| CLSG-1508 | 200 | 346 | 546 | 205 | 159,0 | 198,6 | 3971 | 114,0 | 78 | |
| CLSG-15010 | 250 | 396 | 646 | 205 | 159,0 | 198,6 | 4964 | 114,0 | 92 | |
| CLSG-15012 | 300 | 446 | 746 | 205 | 159,0 | 198,6 | 5957 | 114,0 | 105 | |
| CLSG-2002 | 200 (1861) | 50 | 216 | 266 | 235 | 184,0 | 265,9 | 1330 | 133,0 | 55 |
| CLSG-2006 | 150 | 316 | 466 | 235 | 184,0 | 265,9 | 3989 | 133,0 | 91 | |
| CLSG-20012 | 300 | 466 | 766 | 235 | 184,0 | 265,9 | 7977 | 133,0 | 146 | |
| CLSG-2502 | 250 (2565) | 50 | 235 | 285 | 275 | 216,0 | 366,4 | 1832 | 165,0 | 102 |
| CLSG-2506 | 150 | 335 | 485 | 275 | 216,0 | 366,4 | 5497 | 165,0 | 136 | |
| CLSG-25012 | 300 | 485 | 785 | 275 | 216,0 | 366,4 | 10993 | 165,0 | 207 | |
| CLSG-3002 | 300 (3193) | 50 | 312 | 362 | 310 | 241,0 | 456,2 | 2281 | 197,0 | 184 |
| CLSG-3006 | 150 | 412 | 562 | 310 | 241,0 | 456,2 | 6843 | 197,0 | 232 | |
| CLSG-30012 | 300 | 562 | 862 | 310 | 241,0 | 456,2 | 13685 | 197,0 | 303 | |
| CLSG-4002 | 400 (3919) | 50 | 375 | 425 | 350 | 267,0 | 559,9 | 2800 | 216,0 | 270 |
| CLSG-4006 | 150 | 475 | 625 | 350 | 267,0 | 559,9 | 8399 | 216,0 | 330 | |
| CLSG-40012 | 300 | 625 | 925 | 350 | 267,0 | 559,9 | 16797 | 216,0 | 421 | |
| CLSG-5002 | 500 (5114) | 50 | 419 | 469 | 400 | 305,0 | 730,6 | 3653 | 248,0 | 401 |
| CLSG-5006 | 150 | 519 | 669 | 400 | 305,0 | 730,6 | 10959 | 248,0 | 480 | |
| CLSG-50012 | 300 | 669 | 969 | 400 | 305,0 | 730,6 | 21918 | 248,0 | 599 | |
| CLSG-6002 | 600 (5987) | 50 | 429 | 479 | 430 | 330,0 | 855,3 | 4276 | 267,0 | 474 |
| CLSG-6006 | 150 | 529 | 679 | 430 | 330,0 | 855,3 | 12829 | 267,0 | 565 | |
| CLSG-60012 | 300 | 679 | 979 | 430 | 330,0 | 855,3 | 25659 | 267,0 | 701 | |
| CLSG-8002 | 800 (8234) | 50 | 474 | 524 | 505 | 387,0 | 1176,3 | 5881 | 317,0 | 741 |
| CLSG-8006 | 150 | 574 | 724 | 505 | 387,0 | 1176,3 | 17644 | 317,0 | 880 | |
| CLSG-80012 | 300 | 724 | 1024 | 505 | 387,0 | 1176,3 | 35288 | 317,0 | 1058 | |
| CLSG-10002 | 1000 (10260) | 50 | 564 | 614 | 560 | 432,0 | 1465,7 | 7329 | 343,0 | 1062 |
| CLSG-10006 | 150 | 664 | 814 | 560 | 432,0 | 1465,7 | 21986 | 343,0 | 1213 | |
| CLSG-100012 | 300 | 814 | 1114 | 560 | 432,0 | 1465,7 | 43972 | 343,0 | 1439 |

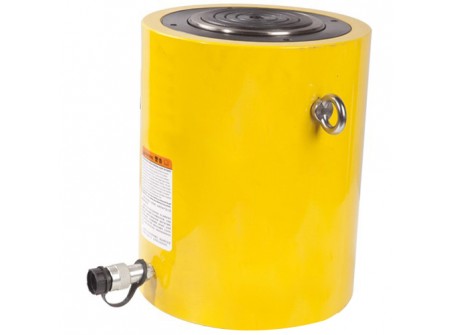

CLSG1006 Single Acting Hydraulic Cylinders
More information on detail, please feel free to contact me
Additional Information
| Model No. | CLSG-15012 |
|---|---|
| Working Type | Single Acting |
| Working Pressure | 700 bar |
| Capacity | 150 ton |
| Stroke | 300 mm |
| Collapsed Height | 446 mm |
| Outside Diameter | 205 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
