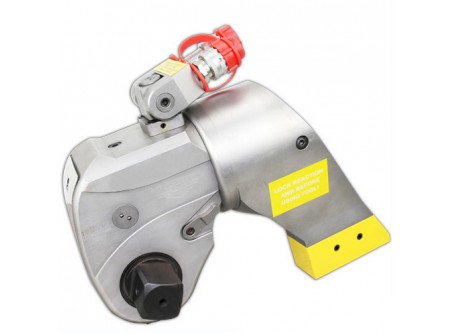

Al-Ti Alloy Square Drive Hydraulic Torque Wrench

Quick Overview

Light weight, Fast Operation Cycle,
Fine Tooth Pawl and Floating Piston Design.

* Required Fields

Price as configured: $0.00

Availability: In stock

From: $2,476.00

To: $9,809.00

Price as configured: $0.00

Details

Square Drive Hydraulic Torque Wrenches

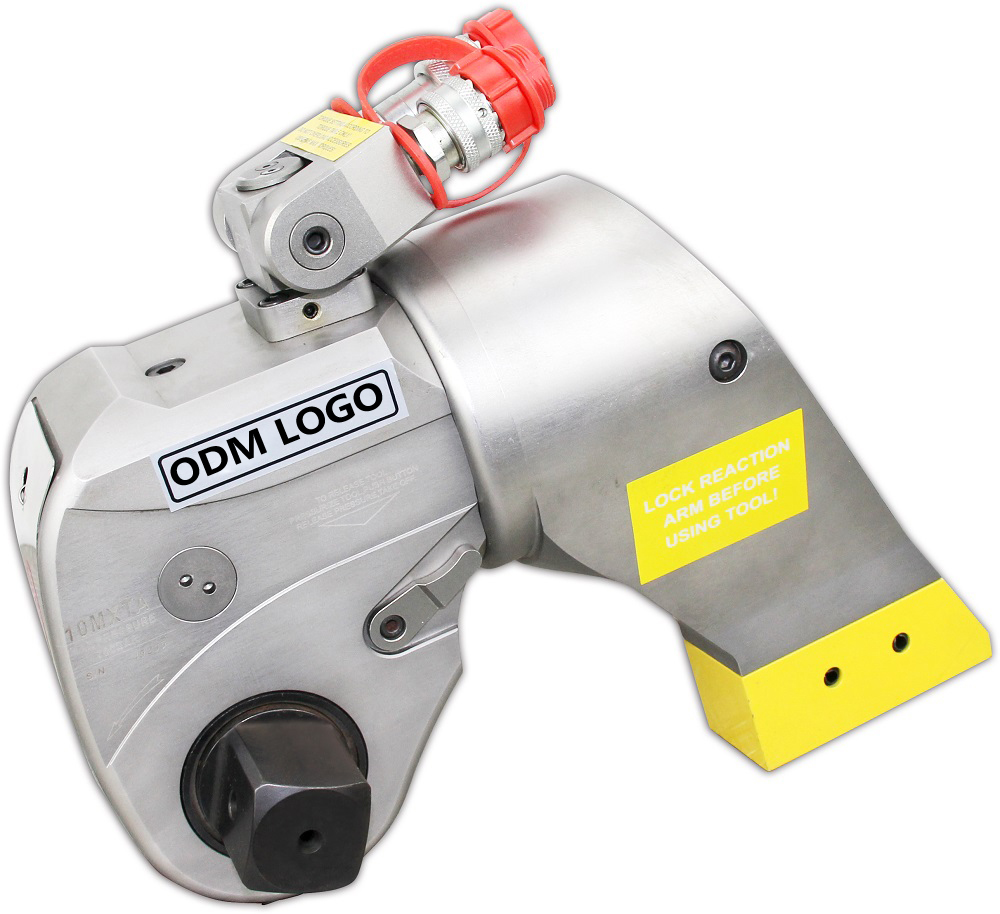

MXTA Series Al-Ti Alloy Square drive hydraulic torque wrench.

Maximum Torque at 700 bar:
48,666 Nm
Square Drive Range:
¾ - 2½ inch

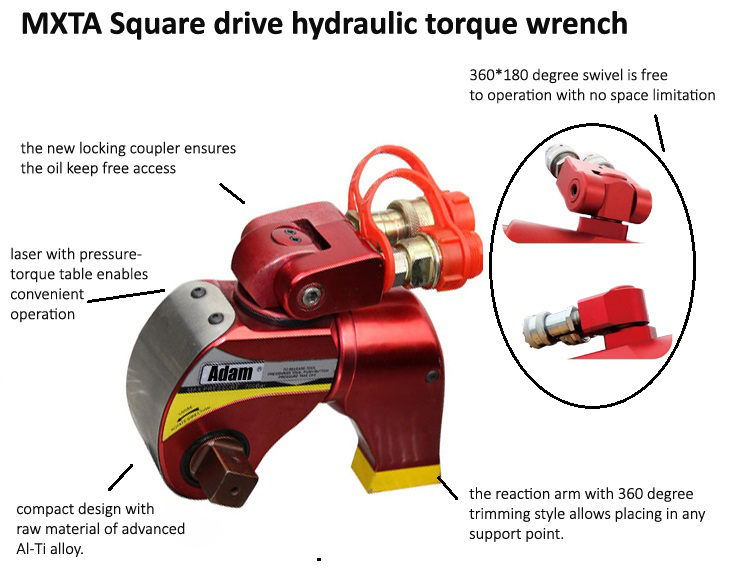

Simplicity
• Includes handle to improve tool handling and safety
• 360° click-on, multi-position reaction arm
• Push button square drive release to quickly reverse the
square drive for tightening or loosening
• Fine tooth ratchet prevents tool “lock-on”
• Single 360° hydraulic swivel manifold, complete with
screw lock couplings, increases wrench and hose
manoeuvrability.


Design
• Compact, Al-Ti Alloy construction for a
small operating radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Lightweight, ergonomic design for easy handling and an
easy fit, even in applications where access is limited
• Optimised strength-to-weight ratio


Reliability
• All wrenches are nickel-plated for excellent corrosion
protection and improved durability in harsh environments.
Accuracy
• Constant torque output provides high accuracy across
the full stroke
• Accuracy of ± 3% can be achieved because the Uni-Body
construction reduces internal deflections.

Check the parameters and confirm the model No. of

the Al-Ti Alloy Square Drive Hydraulic Torque Wrench

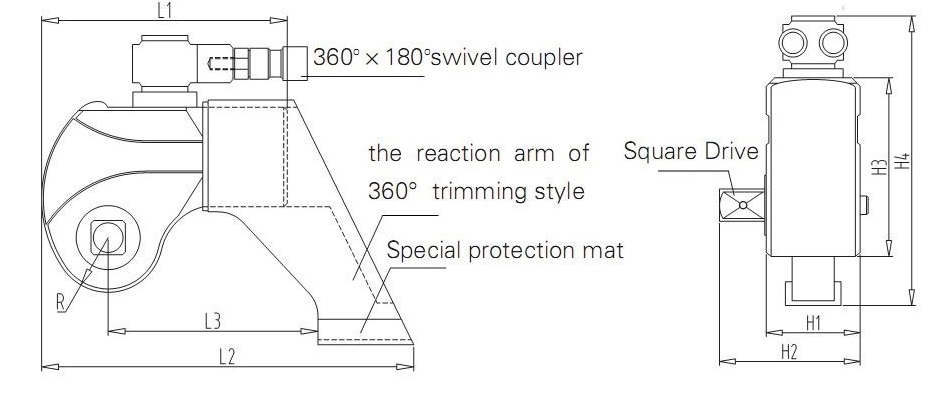

Model No. 1MXTA 3MXTA 5MXTA 8MXTA 10MXTA 20MXTA 25MXTA 35MXTA
Torque Value (N.M) 183-1837 451-4512 752-7528 1078-10780 1551-15516 2666-26664 3472-34725 4866-48666
Bolt Diameter 16-36 22-48 27-56 30-64 36-72 42-90 48-100 64-115
Nut A/F (mm) 24-55 34-75 41-85 46-95 55-105 65-110 75-145 95-165
L1 133.5 169 202.5 216 237.5 299.5 313 361.5
L2 185.5 242 283.5 309 340.5 466.5 461 496.5
H1 50 68 80 90 100 120 137 153
H2 72 95 123 134 142 183 200 216
H3 95.5 127 149 167 182 220 247 282
H4 131 176.5 198.5 216.5 231.5 269.5 296.5 331.5
R1 26 34 39 47 51 59 66 77
R2 99 134 152 171 174 250.5 250.5 27
Square Drive 3/4"   1-1/2" 1-1/2" 1-1/2" 2-1/2" 2-1/2" 2-1/2"

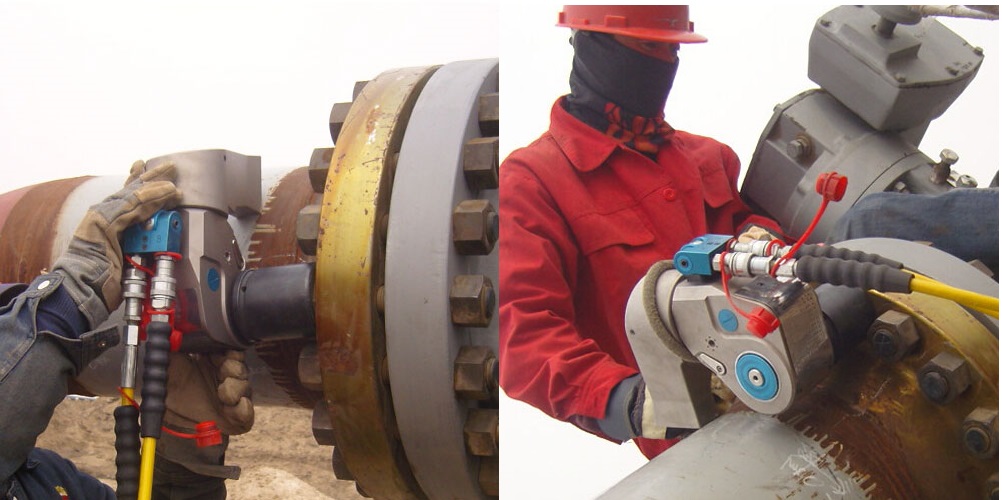

Square drive hydraulic torque wrenches for  Gas pipeline bolt preload

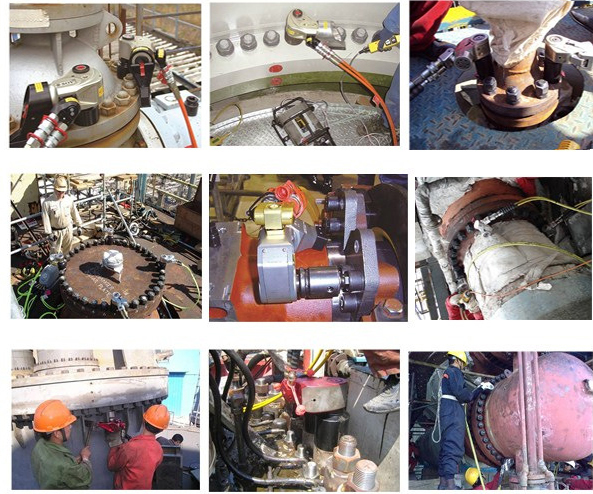

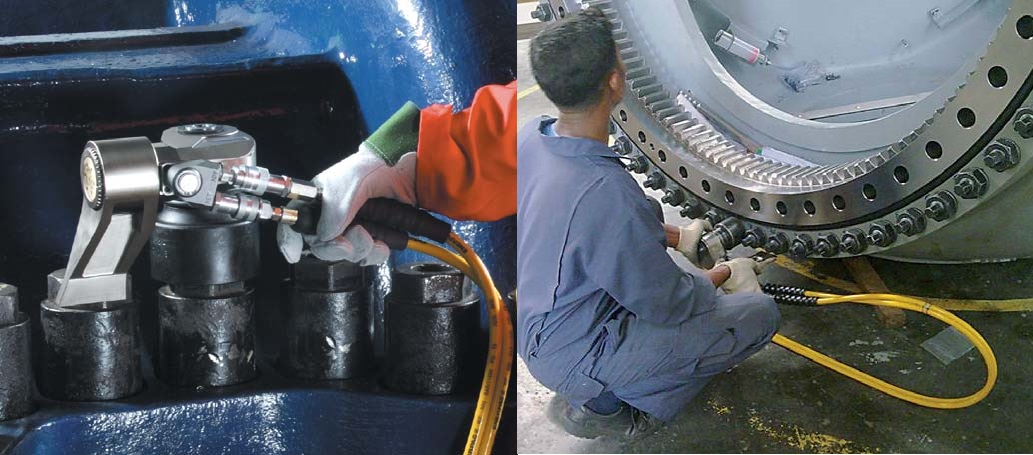

Square Drive Hydraulic Torque Wrench Applications

More information on detail, please feel free to contact me


Additional Information

Weight (g) N/A
Model No. 10 MXTA
Wrench Type Square Drive
Working Type Double Acting
Working Pressure 700 bar
Torque Value 15516 Nm
Hexagon Size 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100mm, 105mm
Material Al-Ti Alloy
Package Al Alloy Box
