Details

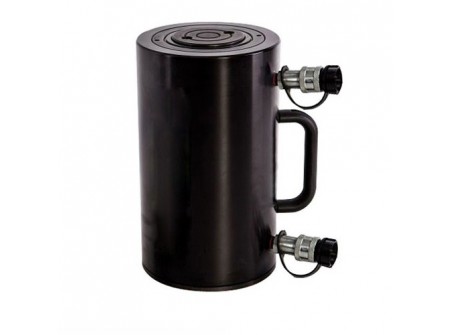

RAR, Double Acting, Aluminium Cylinders
Capacity: 50 - 150 ton
Stroke: 50 - 200 mm
Maximum Operating Pressure: 700 bar
• Double-acting for rapid retraction, regardless of hose
lengths or system losses
• Composite bearings increase cylinder life and sideload
resistance
• Hard-Coat finish on all surfaces resists damage and
extends cylinder life
• Handles included on all models
• Steel base plate and saddle for protection against loadinduced
damage
• Integral stop ring prevents plunger over-travel and is
capable of withstanding the full cylinder capacity
• Built-in safety valve prevents accidental
over-pressurization.
All RAR-cylinders are
equipped with bolt-on
removable hardened
steel saddles.
Check the parameters and confirm the model No.

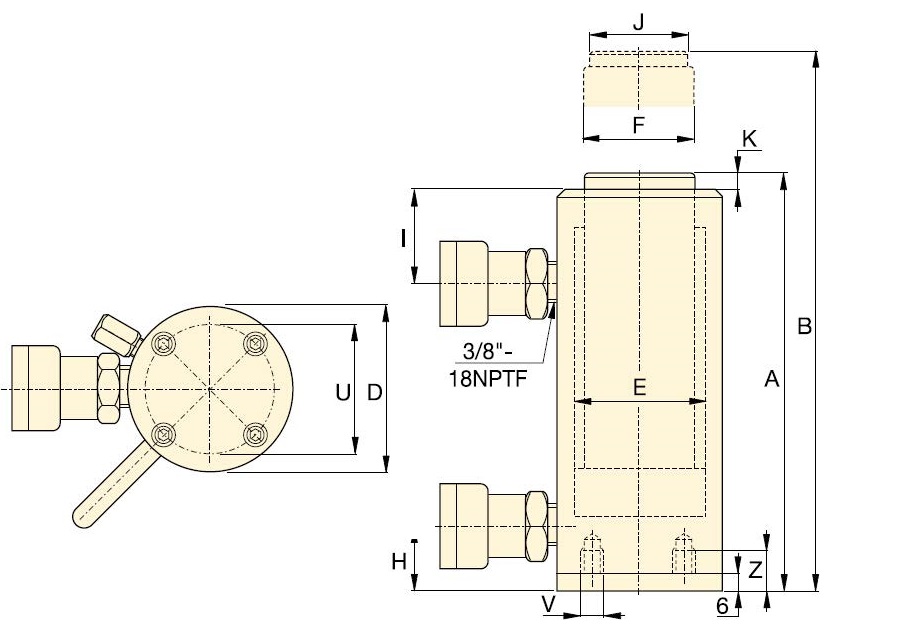

| Model No. | Capacity ton |
Stroke (mm) |
Collapsed Height A (mm) |
Extended Height B (mm) |
Outside Diameter D (mm) |
Bore Diameter E (mm) |
Plunger Diameter F (mm) |
Capacity (kN) |
Oil Capacity Push Pull |
Effective Area (cm2) |
Weight (kg) |
|||
| RAR-502 | 50 | 50 | 201 | 251 | 145 | 95 | 75 | 496 | 187 | 354 | 134 | 70,9 | 26,7 | 11,1 |
| RAR-504 | 100 | 251 | 351 | 145 | 95 | 75 | 496 | 187 | 709 | 267 | 70,9 | 26,7 | 12,7 | |
| RAR-506 | 150 | 301 | 451 | 145 | 95 | 75 | 496 | 187 | 1063 | 401 | 70,9 | 26,7 | 14,3 | |
| RAR-1004 | 100 | 100 | 301 | 401 | 185 | 135 | 90 | 1002 | 557 | 1431 | 795 | 143,1 | 79,5 | 19,3 |
| RAR-1006 | 150 | 351 | 501 | 185 | 135 | 90 | 1002 | 557 | 2147 | 1193 | 143,1 | 79,5 | 22,2 | |
| RAR-1008 | 200 | 401 | 601 | 185 | 135 | 90 | 1002 | 557 | 2863 | 1590 | 143,1 | 79,5 | 25,1 | |
| RAR-1506 | 150 | 150 | 348 | 498 | 230 | 170 | 110 | 1589 | 924 | 3405 | 1980 | 227,0 | 132,0 | 33,2 |

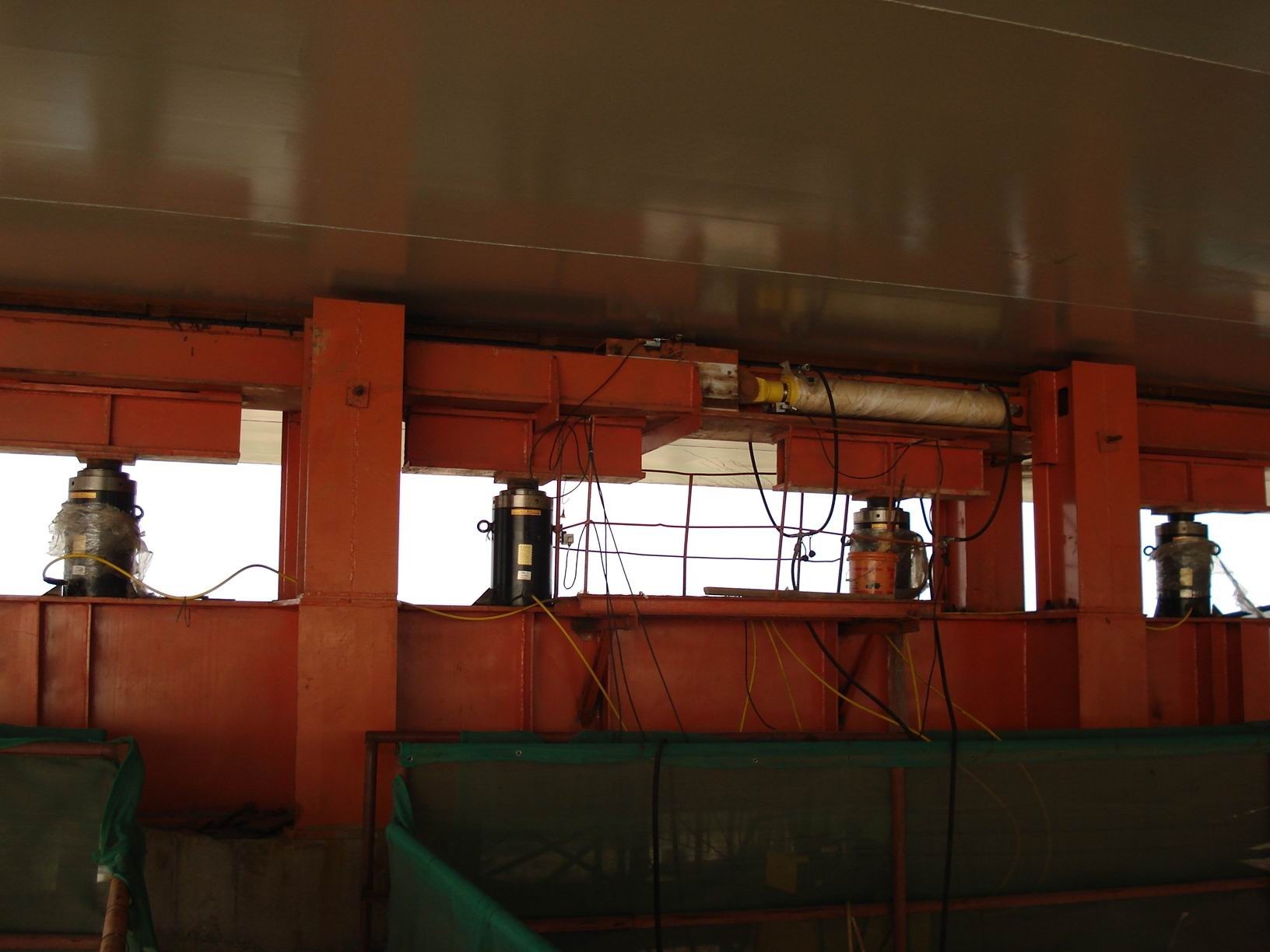

Steel Construction Support or Lifting.
Double Acting,RAR series aluminium cylinder.
Note: Every RAR-cylinder is available with a stroke of 50, 100, 150, 200 and 250 mm.
These cylinders are also available with 20 and 30 ton capacity.
More information on detail, please feel free to contact me
Additional Information
| Model No. | RAR-502 |
|---|---|
| Working Type | Double Acting |
| Working Pressure | 700 bar |
| Capacity | 50 ton |
| Stroke | 50 mm |
| Collapsed Height | 201 mm |
| Outside Diameter | 145 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
