RSM, RCS Series, Low Height Cylinders
Capacity:
5 - 150 ton
Stroke:
6 - 62 mm
Maximum Operating Pressure:
700 bar
Saddles
All RCS-Series cylinders have
plunger mounting holes for
installation of tilt saddles.
See table for selection and
dimensional information

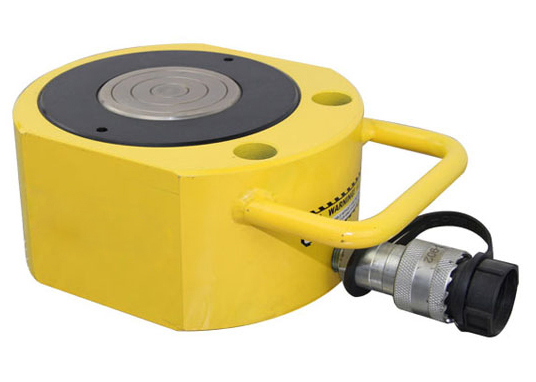

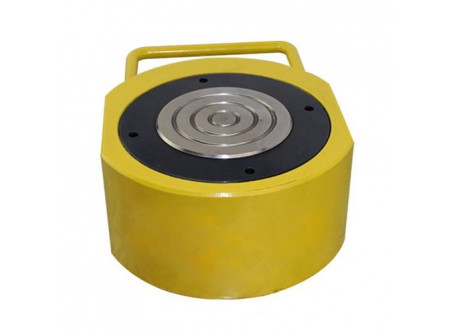

RSM-series, Flat-Jac® Cylinders
• Compact, flat design for use where most other cylinders
will not fit
• Single-acting, spring return
• RSM-750, 1000 and 1500 have handles for easy carrying
• Mounting holes permit easy fixturing
• Baked enamel finish for increased corrosion resistance
• CR-400 coupler and dust cap included on all models1)
• Hard chrome plated high quality steel plungers
• Grooved plunger ends require no saddle.

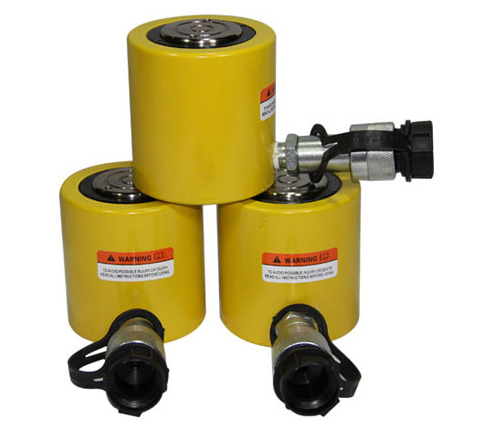

RCS-series, Low Height Cylinders
• Lightweight, low profile design for use in confined spaces
• Single-acting, spring return
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contamination,
extending cylinder life
• CR-400 coupler and dust cap included on all models
• Grooved plunger end with threaded holes for mounting
tilt saddles
• Integral handle on RCS-1002 for easy carrying
• Plated steel plungers.

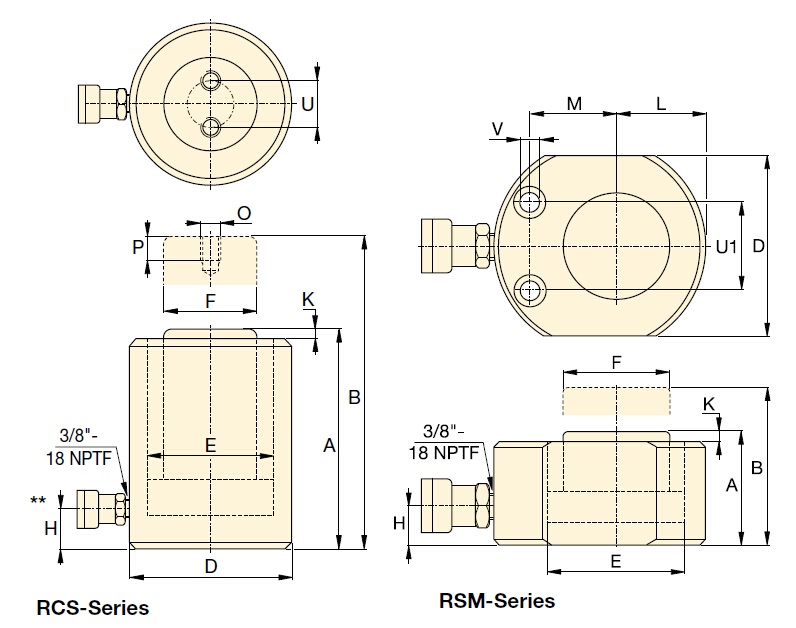

| Model No. |
Capa-city ton (kN) |
Stroke (mm) |
Collapsed Height A (mm) |
Extended Height B (mm) |
Outside Diameter D (mm) |
Bore Dia. E (mm) |
Effective Area (cm2) |
Oil Capcacity (cm3) |
Plunger Dia. F (mm) |
Weight (kg) |
| RSM-50 | 5 (45) | 6 | 32 | 38 | 58 x 41 | 28,7 | 6,5 | 4 | 25,4 | 1,0 |
| RSM-100 | 10 (101) | 12 | 43 | 54 | 82 x 55 | 42,9 | 14,5 | 18 | 38,1 | 1,4 |
| RSM-200 | 20 (201) | 11 | 51 | 62 | 101 x 76 | 60,5 | 28,7 | 32 | 50,8 | 3,1 |
| RSM-300 | 30 (295) | 13 | 58 | 71 | 117 x 95 | 73,2 | 42,1 | 55 | 63,4 | 4,5 |
| RSM-500 | 45 (435) | 16 | 66 | 82 | 140 x 114 | 88,9 | 62,1 | 99 | 69,8 | 6,8 |
| RSM-750 | 75 (718) | 16 | 79 | 95 | 165 x 139 | 114,3 | 102,6 | 164 | 82,6 | 11,3 |
| RSM-1000 | 90 (887) | 16 | 85 | 101 | 178 x 153 | 127,0 | 126,7 | 203 | 92,2 | 14,5 |
| RSM-1500 | 150 (1386) | 16 | 100 | 116 | 215 x 190 | 158,8 | 198,1 | 317 | 114,3 | 26,3 |
| RCS-101* | 10 (101) | 38 | 88 | 126 | 69 | 42,9 | 14,5 | 55 | 38,1 | 4,1 |
| RCS-201* | 20 (201) | 45 | 98 | 143 | 92 | 60,5 | 28,7 | 129 | 50,8 | 5,0 |
| RCS-302* | 30 (295) | 62 | 117 | 179 | 101 | 73,2 | 42,1 | 261 | 66,5 | 6,8 |
| RCS-502* | 45 (435) | 60 | 122 | 182 | 124 | 88,9 | 62,1 | 373 | 69,8 | 10,9 |
| RCS-1002* | 90 (887) | 57 | 141 | 198 | 165 | 127,0 | 126,7 | 722 | 92,2 | 22,7 |

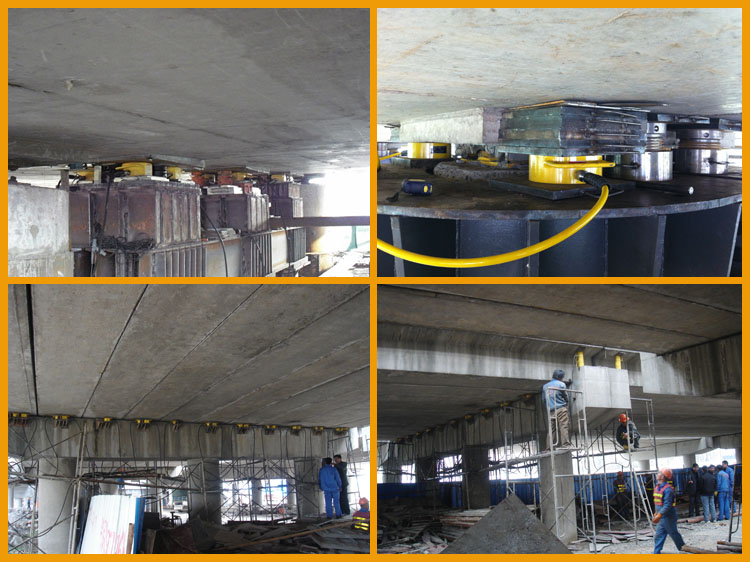

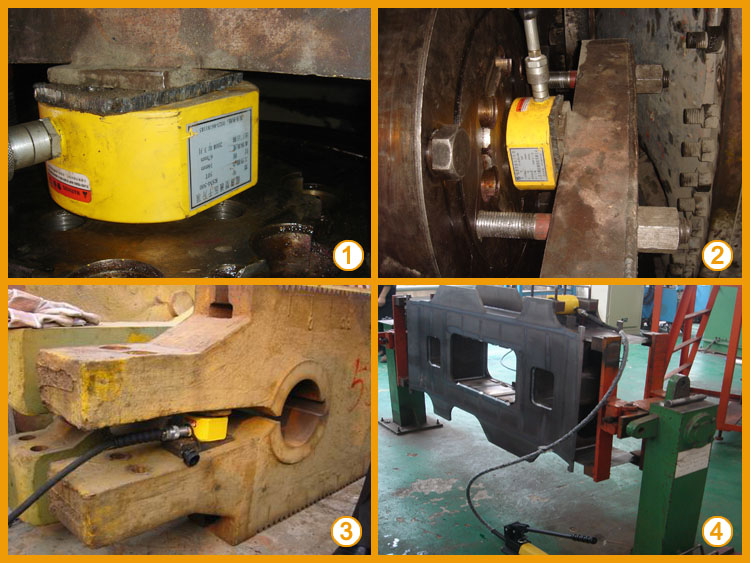

Applications:
Single-Acting, Low Height Cylinders
Hydraulic Cylinder - Hand Pump Set
Hydraulic Cylinder and Hand Pump Set Package:
More information on detail, please feel free to contact me
Additional Information
| Model No. | RSM-50 |
|---|---|
| Working Type | Single Acting |
| Working Pressure | 700 bar |
| Capacity | 5 ton |
| Stroke | 6 mm |
| Collapsed Height | 32 mm |
| Outside Diameter | 58 * 41 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
