Details

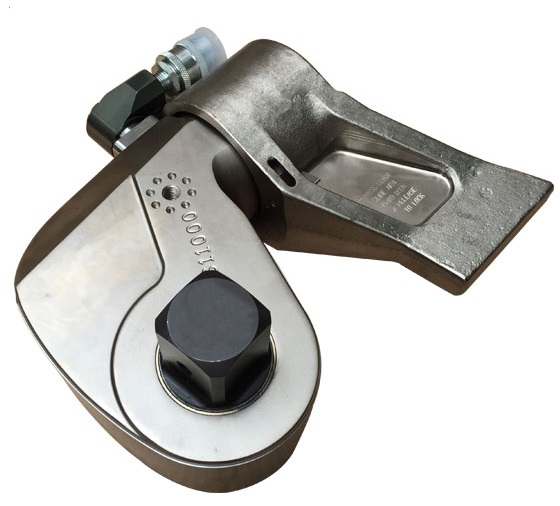

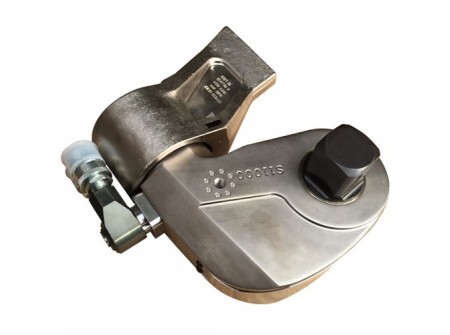

Square Drive Hydraulic Torque Wrenches
Maximum Torque at 700 bar:
34.079 Nm
Square Drive Range:
¾ - 2½ inch
Nose Radius:
25,0 - 63,5 mm
Maximum Operating Pressure:
700 bar
Simplicity
• Includes handle to improve tool handling and safety
• 360° click-on, multi-position reaction arm
• Push button square drive release to quickly reverse the
square drive for tightening or loosening
• Fine tooth ratchet prevents tool “lock-on”
• Single 360° hydraulic swivel manifold, complete with
screw lock couplings, increases wrench and hose
manoeuvrability.
Design
• Compact, high strength uni-body construction for a
small operating radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Lightweight, ergonomic design for easy handling and an
easy fit, even in applications where access is limited
• Optimised strength-to-weight ratio
• Fast operation due to the large nut rotation per wrench
cycle (35 degree rotation angle) and rapid return stroke.
Reliability
• All wrenches are nickel-plated for excellent corrosion
protection and improved durability in harsh environments.
Accuracy
• Constant torque output provides high accuracy across
the full stroke
• Accuracy of ± 3% can be achieved because the Uni-Body
construction reduces internal deflections.

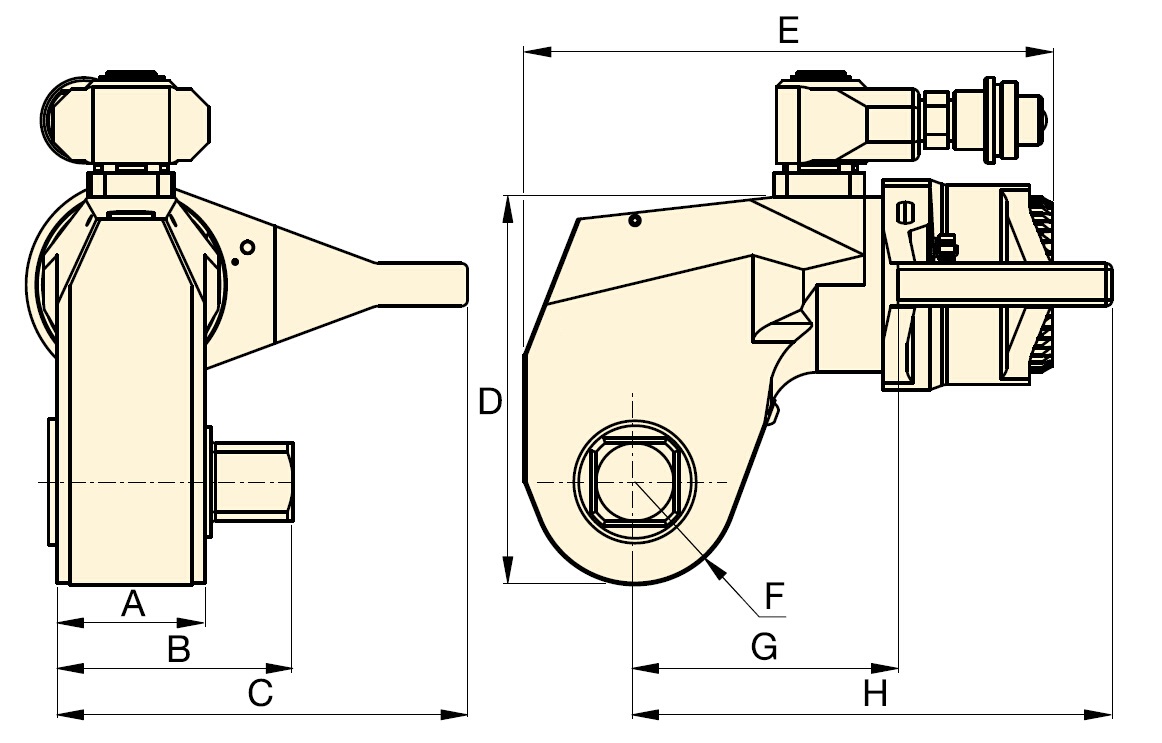

| Size(mm) | Weight (kg) |
Model No. | |||||||
| A | B | C | D | E | F | G | H | ||
| 39 | 65 | 108 | 97 | 136 | 25 | 70 | 129 | 2.7 | S1500 |
| 48 | 80 | 135 | 128 | 173 | 33 | 90 | 161 | 5 | S3000 |
| 55 | 92 | 169 | 157 | 192 | 40 | 110 | 188 | 8.5 | S6000 |
| 72 | 114 | 197 | 190 | 228 | 49.5 | 133 | 229 | 15 | S11000 |
| 89 | 143 | 246 | 244 | 287 | 63.5 | 182 | 295 | 31 | S25000 |
Check the parameters and confirm the model No. of
the Steel Square Drive Hydraulic Torque Wrench
| Model No. | Maximum Torque at 700 bar |
Square Drive | Heavy-Duty Sockets | |||
| (Nm) | (Ft .lbs) | Size （inch） |
Model Nr. (included with wrench) |
METRIC SIZE A/F (mm) |
IMPERIAL SOCKETS | |
| S1500 | 1898 | 1440 | 3/4 | SD15-012 | 19 - 50 | 3/4 - 2 |
| S3000 | 4339 | 3200 | 1 | SD30-100 | 19 - 100 | 3/4 - 3 7/8 |
| S6000 | 8144 | 6010 | 1½ | SD60-108 | 36 - 115 | 1 7/16 - 4 5/8 |
| S11000 | 14914 | 11000 | 1½ | SD110-108 | 36 - 115 | 1 7/16 - 4 5/8 |
| S25000 | 25140 | 25140 | 2½ | SD250-208 | 65 - 155 | 2 7/16 - 6 1/8 |
Steel hydraulic torque wrenches for Gas pipeline bolt preload
Square Drive Hydraulic Torque Wrench Applications
More information on detail, please feel free to contact me
Additional Information
| Weight (g) | N/A |
|---|---|
| Model No. | S11000 |
| Wrench Type | Square Drive |
| Working Type | Double Acting |
| Working Pressure | 700 bar |
| Torque Value | 14914Nm (11000Ft.lbs) |
| Hexagon Size | 41 mm, 46 mm, 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100mm, 105mm, 110mm, 115mm, 120mm, 125mm, 130mm, 135mm, 140mm, 145mm, 150mm, 155mm |
| Material | Rigid Steel |
| Package | Al Alloy Box |
