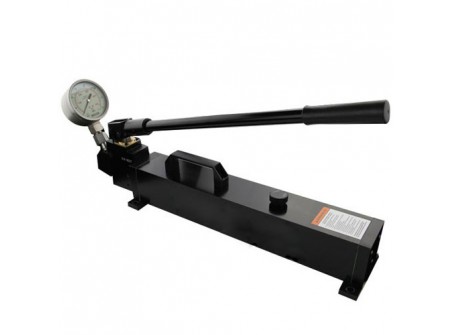

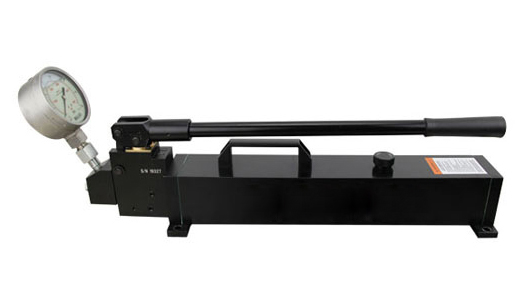

Ultra High Pressure Hand Pump

Details

Ultra-High Pressure Hand Pumps

Working pressure: 1600 - 4000 bar

• Two-speed operation for faster fill operation, reducing cycle times

for many testing applications
• 303 Stainless steel construction enable use with many different fluids,

such as distilled water, diesters, silicones, soluble oils and petroleum

• Large release knob for improved control of pressure release

• Outlet ports are G1/4 cone for 1600 - 4000 bar rating

• Ultra-high pressure fittings feature all stainless steel construction

Check the parameters and confirm the model No.

Model No.	Description	Pressure (bar)		Oil Displacement per stroke(ml)		Outlet	Gauge Port	Oil Capacity (ml)
Model No.	Description	1st Stage	2nd Stage	1st Stage	2nd Stage	Outlet	Gauge Port	Oil Capacity (ml)
AP-1600	Ultra High Pressure Hydraulic Hand Pump	20	1600	32	1.6	G 1/4	G 1/2	2200
AP-2000		20	2000	32	1.6	G 1/4	G 1/2	2200
AP-2800		20	2800	32	0.9	G 1/4	G 1/2	2200
AP-3000		20	3000	32	0.9	G 1/4	G 1/2	2200
AP-4000		20	4000	32	0.9	G 1/4	G 1/2	2200

High Pressure Hydraulic Hand Pump and Bolt tensioner set, Specialized in Customs solution.

2800bar working pressure, one AP-2800 hand pump for drive two M24-2 bolt tensioner.

More information on detail, please feel free to contact me

Weight (g)	14000.0000
