21LS Series Hydraulic Bolt Tensioners

7 Reviews | Add Your Review

Email to a Friend

Quick Overview

Made to fit where other tools can’t !

*Model No.
New Requirement

* Required Fields

$880.00

QTY:

Availability: In stock

$880.00

Details

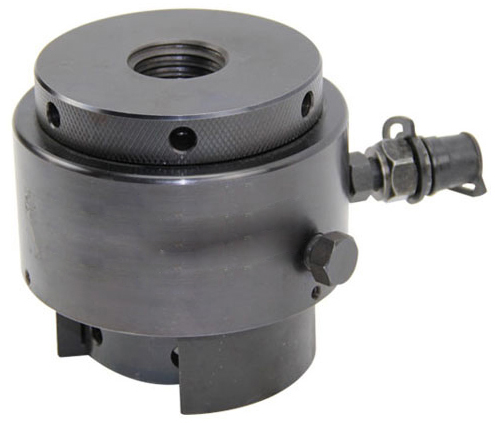

AD21LS Series Hydraulic Bolt Tensioners,

Made to fit where other tools can’t.

With its compact fit and high load generation,
alongside the flexibility to work with all standard flanges

Bolt Range: M24 - M 100

Standard Working Pressure: 1500 bar

Working Pressue Range: 1000 - 4000 bar

The Hydraulic Bolt Tensioner is designed to provide simple but safe tensioning operations

with the added benefit of speed and reliability. The tensioning tool uses a single chamber

hydraulic load cell to load standard studbolts. In operation, the tensioning tools are

assembled to one or more bolts to be tightened.

The tensioner is placed over the nut and a second nut is screwed down onto the tensioner.

Multiple tensioners can be assembled to a single joint to create simultaneous and uniform

joint compression and bolt loading.

In order to apply load to the bolt, the pump is activated and a predetermined pressure

is applied to the system. As the tensioners apply load to each bolt, the nuts are lifted from

the joint surface as the bolt stretches due to the load. While the tensioner system pressure

is maintained, each of the flange nuts are tightened back down against the joint face.

Upon release of the system pressure, the load is retained/trapped in each bolt.

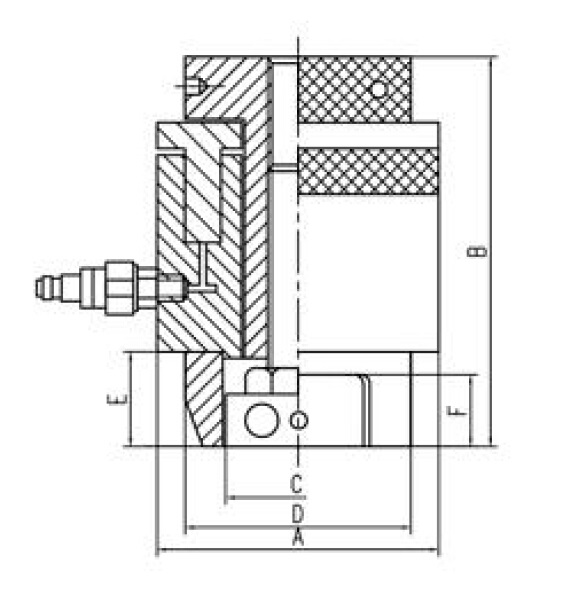

Check the parameters and confirm the model No.

Model	Thread sizes	Max tensile force	Size						Stroke
Model	Thread sizes	KN	A	B	C	D	E	F	mm
AD21LS24	M24	223	86	119	46	69	29	24	10
AD21LS27	M27	223	86	119	52	76	29	27	10
AD21LS30	M30	401	107	131	57	80	37	30	10
AD21LS33	M33	401	107	131	62	85	37	33	10
AD21LS36	M36	401	107	132	68	91	38	36	10
AD21LS39	M39	401	107	135	75	93	41	39	10
AD21LS42	M42	769	138	152	80	105	49	42	10
AD21LS45	M45	769	138	153	85	111	50	45	10
AD21LS48	M48	769	138	154	92	116	51	48	10
AD21LS52	M52	769	138	155	96	120	52	52	10
AD21LS56	M56	1467	174	170	102	136	62	56	10
AD21LS60	M60	1467	174	171	108	142	63	60	10
AD21LS64	M64	1467	174	172	115	150	64	64	10
AD21LS68	M68	1467	174	173	120	154	65	68	10
AD21LS72	M72	2262	210	192	125	158	73	72	10
AD21LS76	M76	2262	210	193	130	174	75	76	10
AD21LS80	M80	2262	210	195	137	178	77	80	10
AD21LS85	M85	2486	240	197	143	158	78	85	12
AD21LS90	M90	2486	240	200	155	174	80	90	12
AD21LS95	M95	2486	240	205	160	178	85	95	12
AD21LS100	M100	3958	276	210	170	158	92	100	12
AD21LS105	M105	3958	276	220	180	174	95	105	12
AD21LS110	M110	5860	325	230	185	275	104	110	12
AD21LS115	M115	5860	325	240	193	285	108	115	12

Customized 1-2 Compact Bolt tensioenr set, Specialized in Customs solution.

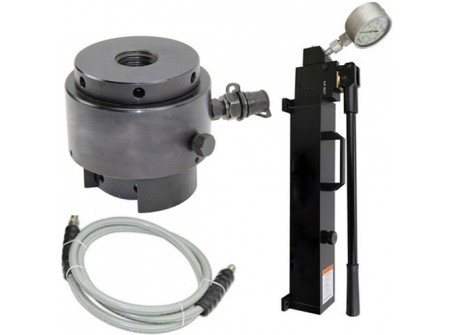

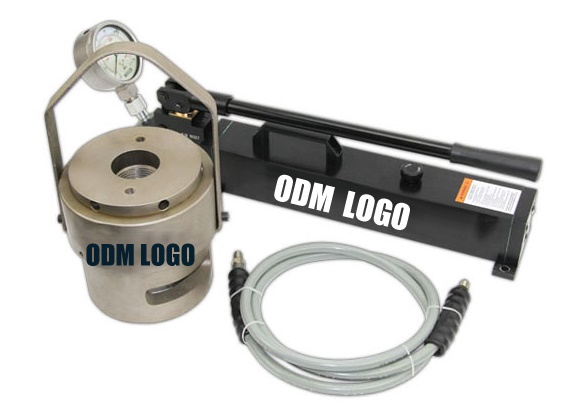

2800bar working pressure, one UP-2800 hand pump for drive two M24-2 bolt tensioner.

Hydraulic Bolt tensioner Applications:

Customized M160*6 Hydraulic Bolt Tensioners

More information on detail, please feel free to contact me

Additional Information

Weight (g)	100000.0000
