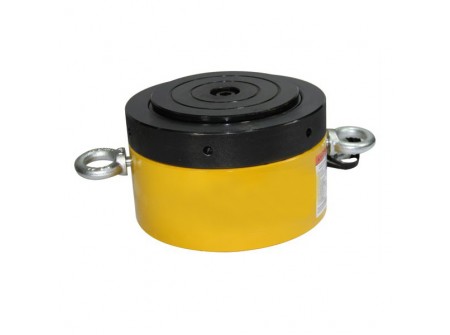

The Shortest Power Lifter

* Required Fields

Price as configured: $0.00

Availability: In stock

As low as: $998.00

Price as configured: $0.00

Details

• Extremely low height for use in confined areas
• Lock nut for positive and safe mechanical load holding
over a long period of time
• Single-acting, load return
• Optional special synthetic coating for improved corrosion
resistance and lower friction for smoother operation
• Overflow port functions as a stroke limiter
• CR-400 coupler and dust cap included on all models.

Tilt Saddles
All CLP-Series cylinders
include integral tilt saddles
with maximum tilt angles
up to 5°.

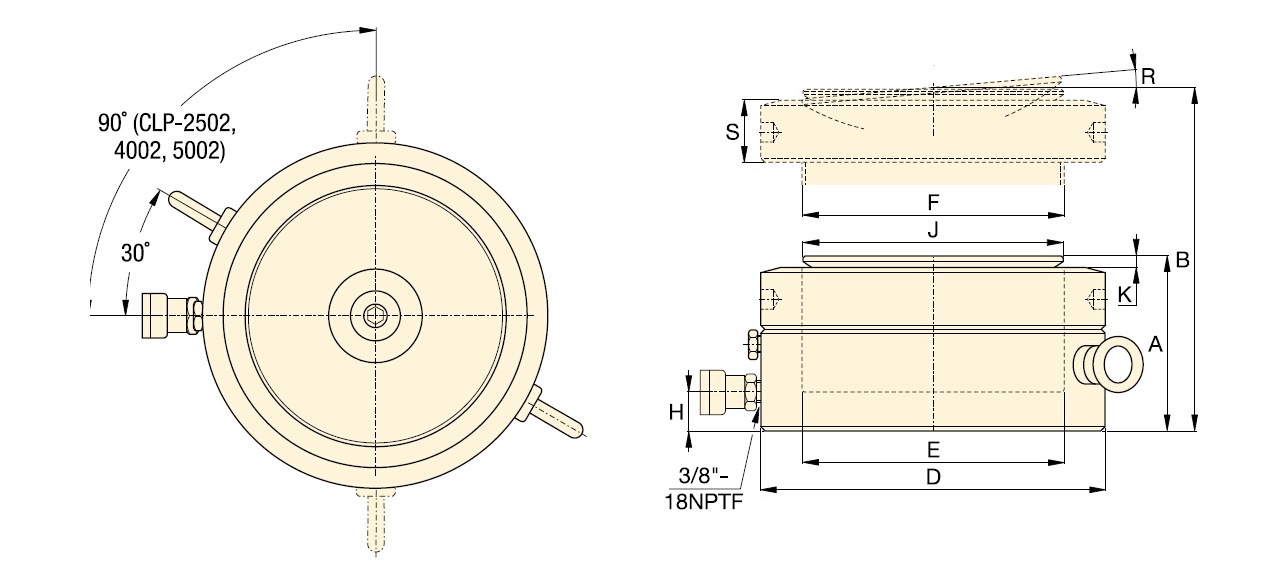

Model No

Capacity

ton (kN)

Stroke

(mm)

 Collapsed

 Height

 A (mm)

 Extended

Height

B (mm)

Outside

 Diameter

D (mm)

Bore

Diameter

E (mm)

Plunger

Diameter

F (mm)

 Effective Area

 (cm2)

 Oil Capacity

(cm3)

 Lock Nut

 Height

S (mm)

 Weight

(kg)
CLP-602  60 (606)  50 125 175 140 105,0  Tr 104 x 4  86,6  432 28 15
CLP-1002  100 (1027)  50 137 187 175 136,7  Tr 136 x 6  146,8  734 31 26
CLP-1602  160 (1619)  45 148 193 220 171,6  Tr 171 x 6  231,3  1040 40 44
CLP-2002  200 (1999)  45 155 200 245 190,7  Tr 190 x 6  285,6  1285 43 57
CLP-2502  260 (2567)  45 159 204 275 216,1  Tr 216 x 6  366,8  1650 44 74
CLP-4002  400 (3916)  45 178 223 350 266,9  Tr 266 x 6  559,5  2517 55 134
CLP-5002  520 (5114)  45 192 237 400 305,0  Tr 305 x 6  730,6  3287 62 189

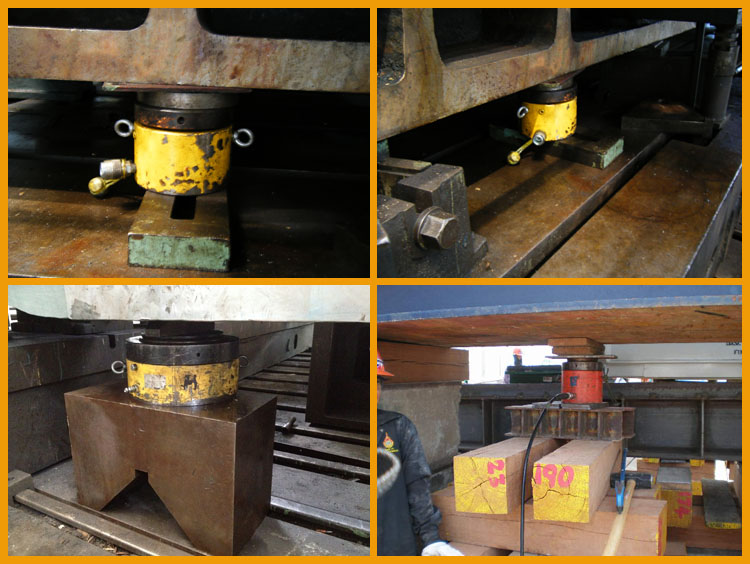

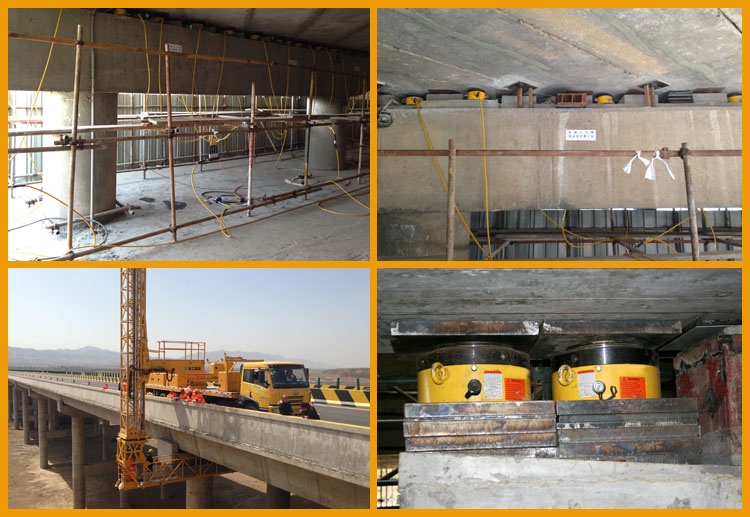

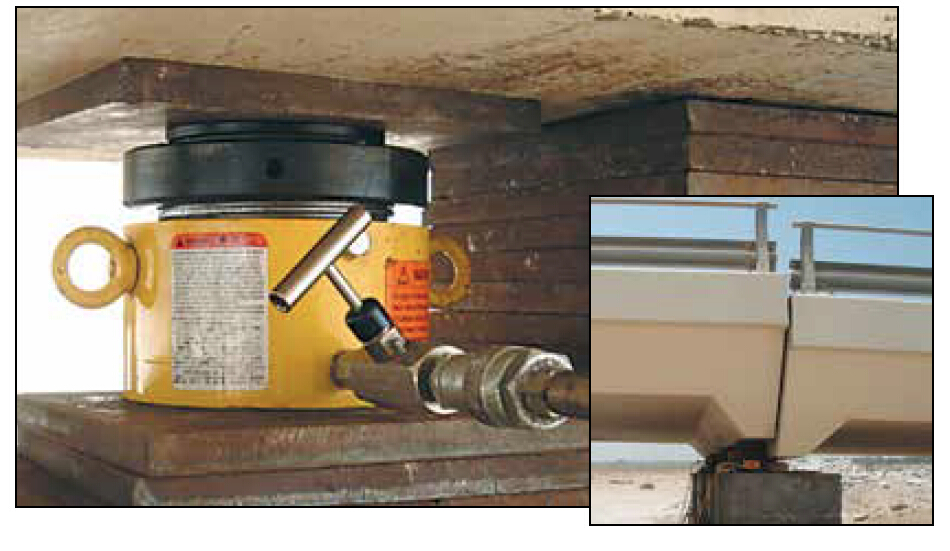

Only the extreme low height CLP-cylinder fits in this confined area to lift the
construction. The V-82 needle valve is used to control cylinder speed during
lifting and lowering.

Single Acting,Pancake Lock Nut Cylinder, 60 - 520 ton.

The Shortest
Power Lifter


ALL CLP-SERIES CYLINDERS REQUIRE A SOLID LIFTING SURFACE FOR CORRECT SUPPORT.
THE USE OF PANCAKE CYLINDERS ON SURFACES SUCH AS SAND, MUD OR DIRT, MAY RESULT IN
CYLINDER DAMAGE!

More information on detail, please feel free to contact me


Additional Information

Model No. CLP-2002
Working Type Single Acting
Working Pressure 700 bar
Capacity 200 ton
Stroke 45 mm
Collapsed Height 155 mm
Outside Diameter 245 mm
Weight (g) N/A
Package Wooden Case
