Details

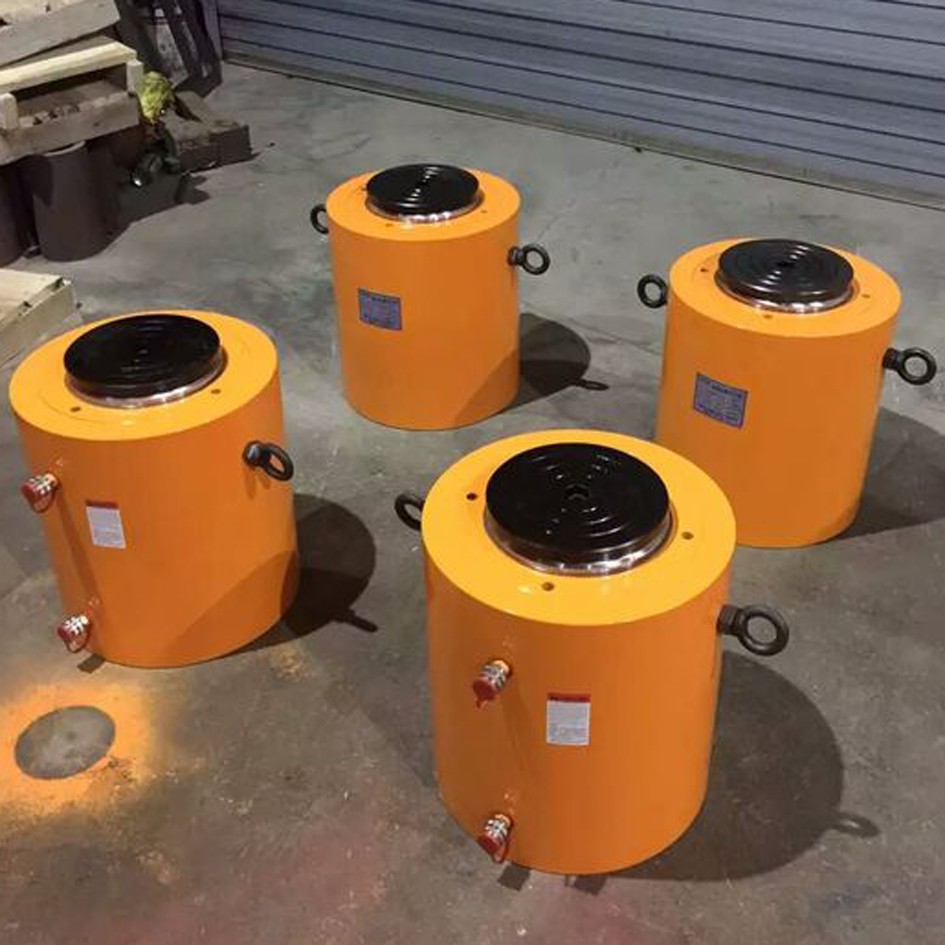

CLRG Series, High Tonnage Cylinders
Capacity: 50 - 1000 ton
Stroke: 50 - 300 mm
Maximum Operating Pressure: 700 bar
• Double-acting, for positive retraction
• Integral stop ring provides piston blow-out protection
• Safety valve in retract side of cylinder helps to prevent
damage in case of accidental over-pressurization
• Plunger wiper reduces contamination, extending
cylinder life
• CR-400 coupler and dust cap included on all models
• Baked enamel finish and plated pistons provide
superior corrosion resistance.
All CLRG cylinders are
equipped with bolt-on
removable grooved saddles.
|
Model Number |
|
Stroke |
Cylinder Capacity |
Effective Area |
Oil |
Coll. Height (A) |
Ext.Height (B) |
Outside (D) |
Weight |
|||
|
ton |
mm |
Push |
Pull |
Push |
Pull |
Push |
Pull |
mm |
mm |
mm |
kg |
|
|
CLRG-502 |
50 |
50 |
539 |
269 |
77,0 |
38,5 |
385 |
192 |
162 |
212 |
130 |
17 |
|
CLRG-504 |
100 |
539 |
269 |
77,0 |
38,5 |
770 |
385 |
212 |
312 |
130 |
20 |
|
|
CLRG-506 |
150 |
539 |
269 |
77,0 |
38,5 |
1155 |
577 |
262 |
412 |
130 |
23 |
|
|
CLRG-508 |
200 |
539 |
269 |
77,0 |
38,5 |
1540 |
770 |
312 |
512 |
130 |
27 |
|
|
CLRG-5010 |
250 |
539 |
269 |
77,0 |
38,5 |
1924 |
962 |
362 |
612 |
130 |
31 |
|
|
CLRG-5012 |
300 |
539 |
269 |
77,0 |
38,5 |
2309 |
1155 |
412 |
712 |
130 |
34 |
|
|
CLRG-1002 |
100 |
50 |
929 |
433 |
132,7 |
61,9 |
664 |
309 |
179 |
229 |
165 |
29 |
|
CLRG-1004 |
100 |
929 |
433 |
132,7 |
61,9 |
1327 |
619 |
229 |
329 |
165 |
34 |
|
|
CLRG-1006 |
150 |
929 |
433 |
132,7 |
61,9 |
1991 |
928 |
279 |
429 |
165 |
40 |
|
|
CLRG-1008 |
200 |
929 |
433 |
132,7 |
61,9 |
2655 |
1237 |
329 |
529 |
165 |
46 |
|
|
CLRG-10010 |
250 |
929 |
433 |
132,7 |
61,9 |
3318 |
1546 |
379 |
629 |
165 |
52 |
|
|
CLRG-10012 |
300 |
929 |
433 |
132.7 |
61,9 |
3982 |
1856 |
429 |
729 |
165 |
58 |
|
|
CLRG-1502 |
150 |
50 |
1390 |
675 |
198,6 |
96,5 |
993 |
482 |
196 |
246 |
205 |
39 |
|
CLRG-1504 |
100 |
1390 |
675 |
198,6 |
96,5 |
1986 |
965 |
246 |
346 |
205 |
52 |
|
|
CLRG-1506 |
150 |
1390 |
675 |
198,6 |
96,5 |
2978 |
1447 |
296 |
446 |
205 |
65 |
|
|
CLRG-1508 |
200 |
1390 |
675 |
198,6 |
96,5 |
3971 |
1930 |
346 |
546 |
205 |
78 |
|
|
CLRG-15010 |
250 |
1390 |
675 |
198,6 |
96,5 |
4964 |
2412 |
396 |
646 |
205 |
92 |
|
|
CLRG-15012 |
300 |
1390 |
675 |
198,6 |
96,5 |
5957 |
2895 |
446 |
746 |
205 |
105 |
|
|
CLRG-2002 |
200 |
50 |
1861 |
889 |
265,9 |
127,0 |
1330 |
635 |
212 |
262 |
235 |
55 |
|
CLRG-2006 |
150 |
1861 |
889 |
265,9 |
127,0 |
3989 |
1905 |
312 |
462 |
235 |
91 |
|
|
CLRG-20012 |
300 |
1861 |
889 |
265,9 |
127,0 |
7977 |
3809 |
462 |
762 |
235 |
146 |
|
|
CLRG-2502 |
250 |
50 |
2565 |
1068 |
366,4 |
152,6 |
1832 |
763 |
235 |
285 |
275 |
89 |
|
CLRG-2506 |
150 |
2565 |
1068 |
366,4 |
152,6 |
5497 |
2289 |
335 |
485 |
275 |
136 |
|
|
CLRG-25012 |
300 |
2565 |
1068 |
366,4 |
152,6 |
10993 |
4578 |
485 |
785 |
275 |
207 |
|
|
CLRG-3002 |
300 |
50 |
3193 |
1060 |
456,2 |
151,4 |
2281 |
757 |
322 |
372 |
310 |
184 |
|
CLRG-3006 |
150 |
3193 |
1060 |
456,2 |
151,4 |
6843 |
2270 |
422 |
572 |
310 |
232 |
|
|
CLRG-30012 |
300 |
3193 |
1060 |
456,2 |
151,4 |
13685 |
4541 |
572 |
872 |
310 |
303 |
|
|
CLRG-4002 |
400 |
50 |
3919 |
1354 |
559,9 |
193,5 |
2800 |
967 |
374 |
424 |
350 |
270 |
|
CLRG-4006 |
150 |
3919 |
1354 |
559,9 |
193,5 |
8399 |
2902 |
474 |
624 |
350 |
330 |
|
|
CLRG-40012 |
300 |
3919 |
1354 |
559,9 |
193,5 |
16797 |
5804 |
624 |
924 |
350 |
421 |
|
|
CLRG-5002 |
500 |
50 |
5114 |
1733 |
730,6 |
247,6 |
3653 |
1238 |
419 |
469 |
400 |
401 |
|
CLRG-5006 |
150 |
5114 |
1733 |
730,6 |
247,6 |
10959 |
3713 |
519 |
669 |
400 |
480 |
|
|
CLRG-50012 |
300 |
5114 |
1733 |
730,6 |
247,6 |
21918 |
7427 |
669 |
969 |
400 |
599 |
|
|
CLRG-6002 |
600 |
50 |
5987 |
2068 |
855,3 |
295,4 |
4276 |
1477 |
429 |
479 |
430 |
474 |
|
CLRG-6006 |
150 |
5987 |
2068 |
855,3 |
295,4 |
12829 |
4431 |
529 |
679 |
430 |
565 |
|
|
CLRG-60012 |
300 |
5987 |
2068 |
855,3 |
295,4 |
25659 |
8862 |
679 |
979 |
430 |
701 |
|
|
CLRG-8002 |
800 |
50 |
8234 |
2709 |
1176,3 |
387,0 |
5881 |
1935 |
484 |
534 |
505 |
741 |
|
CLRG-8006 |
150 |
8234 |
2709 |
1176,3 |
387,0 |
17644 |
5806 |
584 |
734 |
505 |
868 |
|
|
CLRG-80012 |
300 |
8234 |
2709 |
1176,3 |
387,0 |
35288 |
11611 |
734 |
1034 |
505 |
1058 |
|
|
CLRG-10002 |
1000 |
50 |
10260 |
3792 |
1465,7 |
541,7 |
7329 |
2709 |
564 |
614 |
560 |
1062 |
|
CLRG-10006 |
150 |
10260 |
3792 |
1465,7 |
541,7 |
21986 |
8126 |
664 |
814 |
560 |
1213 |
|
|
CLRG-100012 |
300 |
10260 |
3792 |
1465,7 |
541,7 |
43972 |
16252 |
814 |
1114 |
560 |
1439 |
|

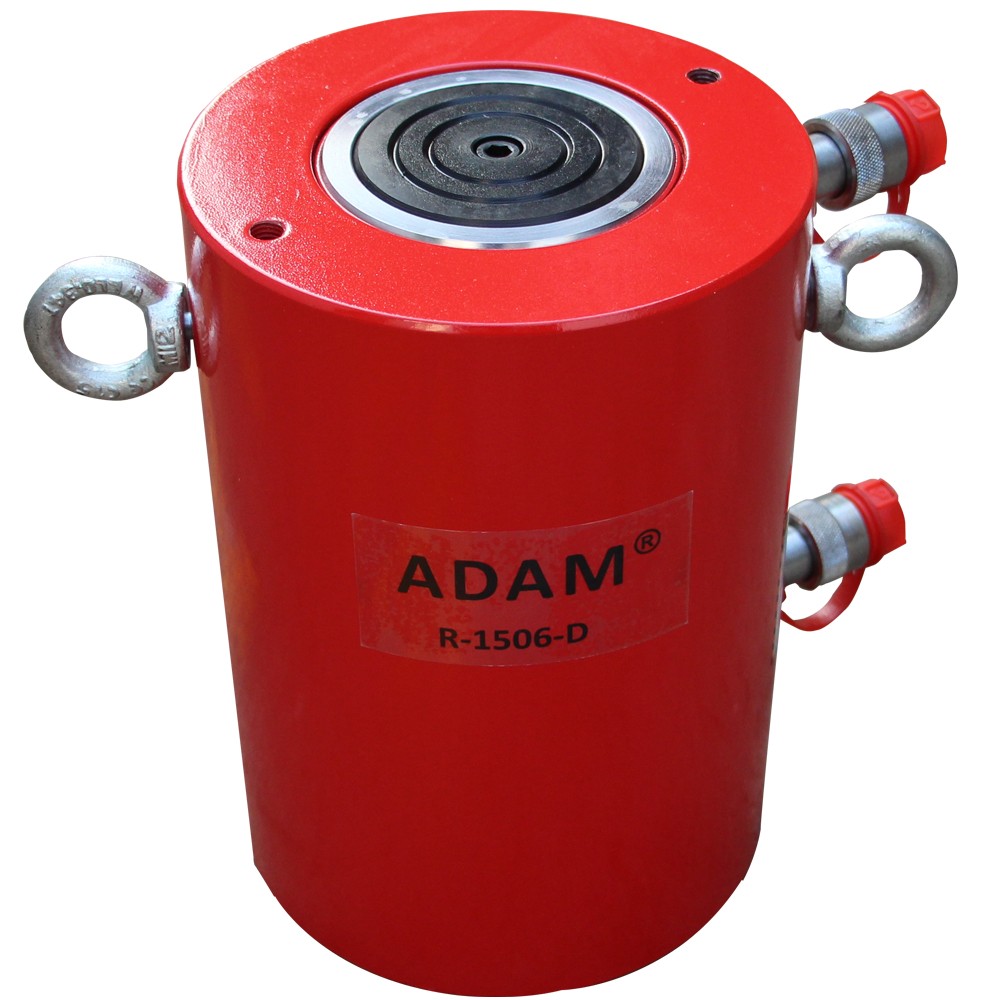

CLRG1506(R-1506D) Customized 150 Ton Hydraulics RAMS

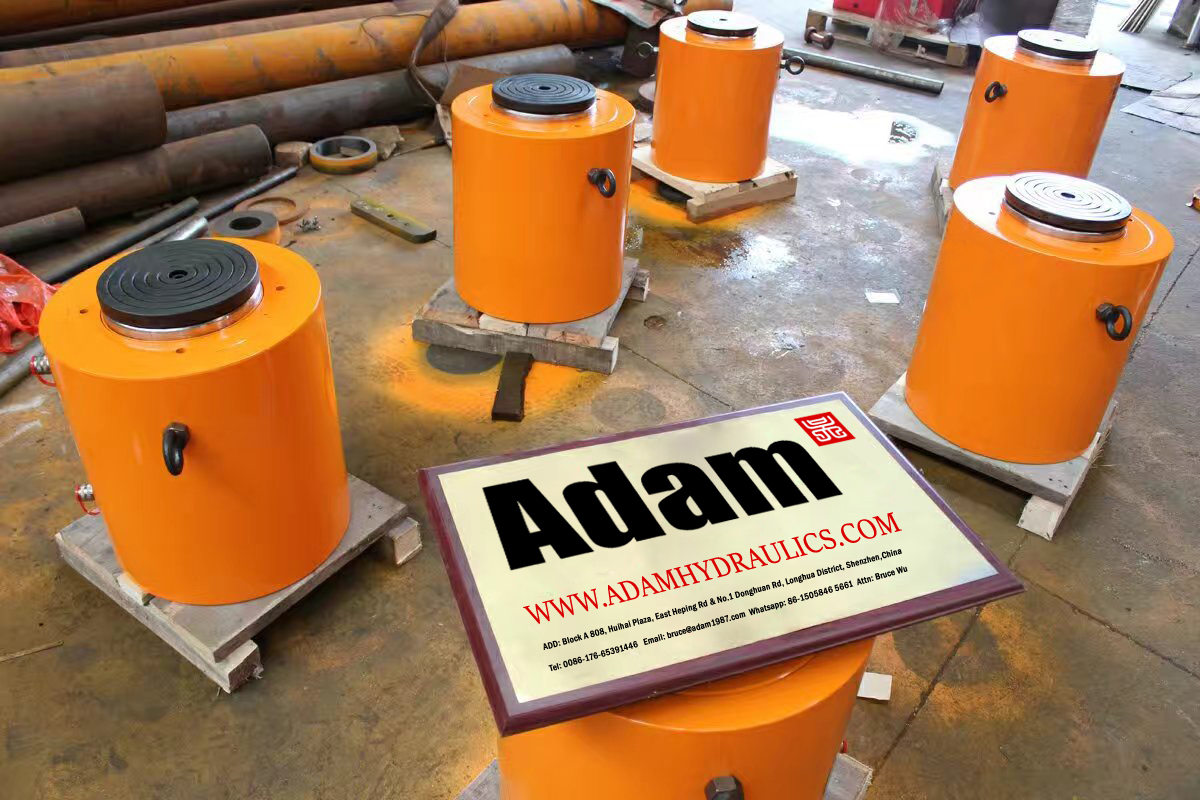

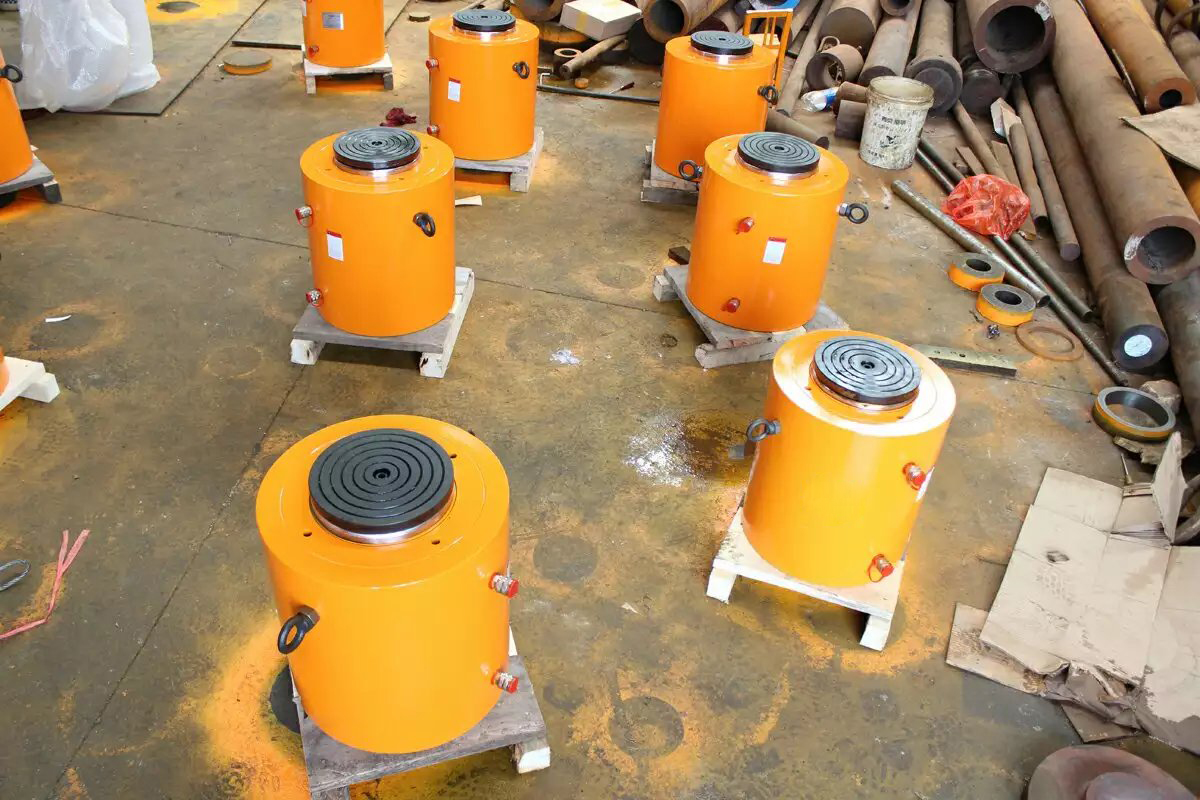

CLRG5008 500 Ton Piling Test Cylinders
Customized Pile Test Cylinder, Double Acting Hydraulic Cylinder
The High Tonnage Double Acting Cylinder are widely used in
many industrial area, Adam Hydraulics Applications as below:
More information on detail, please feel free to contact me
Additional Information
| Model No. | CLRG-502 |
|---|---|
| Working Type | Double Acting |
| Working Pressure | 700 bar |
| Capacity | 50 ton |
| Stroke | 50 mm |
| Collapsed Height | 162 mm |
| Outside Diameter | 130 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
