Details

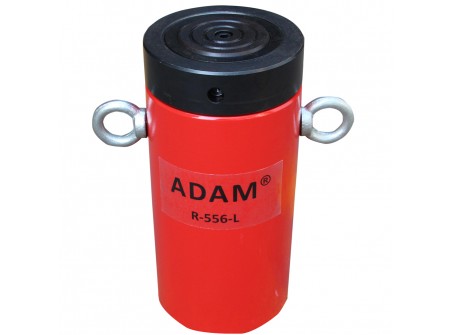

Single Acting Lock Nut Cylinders
Capacity: 50 - 1000 ton
Stroke: 50 - 300 mm
Maximum Operating Pressure: 700 bar
• Single-acting, load return
• Safety Lock Nut for mechanical load holding
• Special synthetic coating for improved corrosion
resistance and lower friction for smoother operation
• Overflow port functions as a stroke limiter
• Interchangeable, hardened grooved saddles are standard
• CR-400 coupler and dust cap included on all models.
All CLL cylinders are
equipped with bolt-on
removable grooved saddles.
To Secure Loads Mechanically
| Model Number |
Capacity ton (kN) |
Stroke (mm) |
Coll. Height A (mm) |
Ext. Height B (mm) |
Outs. Dia. D (mm) |
Cyl. Bore Dia. E (mm) |
Cylinder Effective Area (cm2) |
Oil Capacity (cm3) |
Weight (kg) |
| CLL-502 | 50 (496) | 50 | 164 | 214 | 125 | 95,0 | 70,9 | 355 | 15 |
| CLL-504 | 100 | 214 | 314 | 125 | 95,0 | 70,9 | 709 | 20 | |
| CLL-506 | 150 | 264 | 414 | 125 | 95,0 | 70,9 | 1064 | 25 | |
| CLL-508 | 200 | 314 | 514 | 125 | 95,0 | 70,9 | 1418 | 30 | |
| CLL-5010 | 250 | 364 | 614 | 125 | 95,0 | 70,9 | 1773 | 35 | |
| CLL-5012 | 300 | 414 | 714 | 125 | 95,0 | 70,9 | 2127 | 40 | |
| CLL-1002 | 100 (929) | 50 | 187 | 237 | 165 | 130,0 | 132,7 | 664 | 30 |
| CLL-1004 | 100 | 237 | 337 | 165 | 130,0 | 132,7 | 1327 | 39 | |
| CLL-1006 | 150 | 287 | 437 | 165 | 130,0 | 132,7 | 1991 | 48 | |
| CLL-1008 | 200 | 337 | 537 | 165 | 130,0 | 132,7 | 2654 | 56 | |
| CLL-10010 | 250 | 387 | 637 | 165 | 130,0 | 132,7 | 3318 | 64 | |
| CLL-10012 | 300 | 437 | 737 | 165 | 130,0 | 132,7 | 3981 | 73 | |
| CLL-1502 | 150 (1390) | 50 | 209 | 259 | 205 | 159,0 | 198,6 | 993 | 53 |
| CLL-1504 | 100 | 259 | 359 | 205 | 159,0 | 198,6 | 1986 | 66 | |
| CLL-1506 | 150 | 309 | 459 | 205 | 159,0 | 198,6 | 2979 | 78 | |
| CLL-1508 | 200 | 359 | 559 | 205 | 159,0 | 198,6 | 3972 | 92 | |
| CLL-15010 | 250 | 409 | 659 | 205 | 159,0 | 198,6 | 4965 | 104 | |
| CLL-15012 | 300 | 459 | 759 | 205 | 159,0 | 198,6 | 5958 | 117 | |
| CLL-2002 | 200 (1859) | 50 | 243 | 293 | 235 | 184,0 | 265,6 | 1330 | 83 |
| CLL-2006 | 150 | 343 | 493 | 235 | 184,0 | 265,6 | 3989 | 117 | |
| CLL-20012 | 300 | 493 | 793 | 235 | 184,0 | 265,6 | 7995 | 170 | |
| CLL-2502 | 250 (2562) | 50 | 249 | 299 | 275 | 216,0 | 366,1 | 1832 | 116 |
| CLL-2506 | 150 | 349 | 499 | 275 | 216,0 | 366,1 | 5496 | 162 | |
| CLL-25012 | 300 | 499 | 799 | 275 | 216,0 | 366,1 | 10995 | 234 | |
| CLL-3002 | 300 (3193) | 50 | 295 | 345 | 310 | 241,0 | 456,2 | 2281 | 173 |
| CLL-3006 | 150 | 395 | 545 | 310 | 241,0 | 456,2 | 6843 | 233 | |
| CLL-30012 | 300 | 545 | 845 | 310 | 241,0 | 456,2 | 13740 | 323 | |
| CLL-4002 | 400 (3919) | 50 | 335 | 385 | 350 | 267,0 | 559,9 | 2800 | 250 |
| CLL-4006 | 150 | 435 | 585 | 350 | 267,0 | 559,9 | 8399 | 327 | |
| CLL-40012 | 300 | 585 | 885 | 350 | 267,0 | 559,9 | 16800 | 441 | |
| CLL-5002 | 500 (5118) | 50 | 375 | 425 | 400 | 305,0 | 731,1 | 3653 | 367 |
| CLL-5006 | 150 | 475 | 625 | 400 | 305,0 | 731,1 | 10959 | 466 | |
| CLL-50012 | 300 | 625 | 925 | 400 | 305,0 | 731,1 | 21930 | 617 | |
| CLL-6002 | 600 (5983) | 50 | 395 | 445 | 430 | 330,0 | 854,8 | 4277 | 446 |
| CLL-6006 | 150 | 495 | 645 | 430 | 330,0 | 854,8 | 12830 | 562 | |
| CLL-60012 | 300 | 645 | 945 | 430 | 330,0 | 854,8 | 25650 | 737 | |
| CLL-8002 | 800 (8238) | 50 | 455 | 505 | 505 | 387,0 | 1176,9 | 5882 | 709 |
| CLL-8006 | 150 | 555 | 705 | 505 | 387,0 | 1176,9 | 17645 | 870 | |
| CLL-80012 | 300 | 705 | 1005 | 505 | 387,0 | 1176,9 | 35370 | 1110 | |
| CLL-10002 | 1000 (10260) | 50 | 495 | 545 | 560 | 432,0 | 1466,4 | 7329 | 949 |
| CLL-10006 | 150 | 595 | 745 | 560 | 432,0 | 1466,4 | 21986 | 1141 | |
| CLL-100012 | 300 | 745 | 1045 | 560 | 432,0 | 1466,4 | 43980 | 1430 |

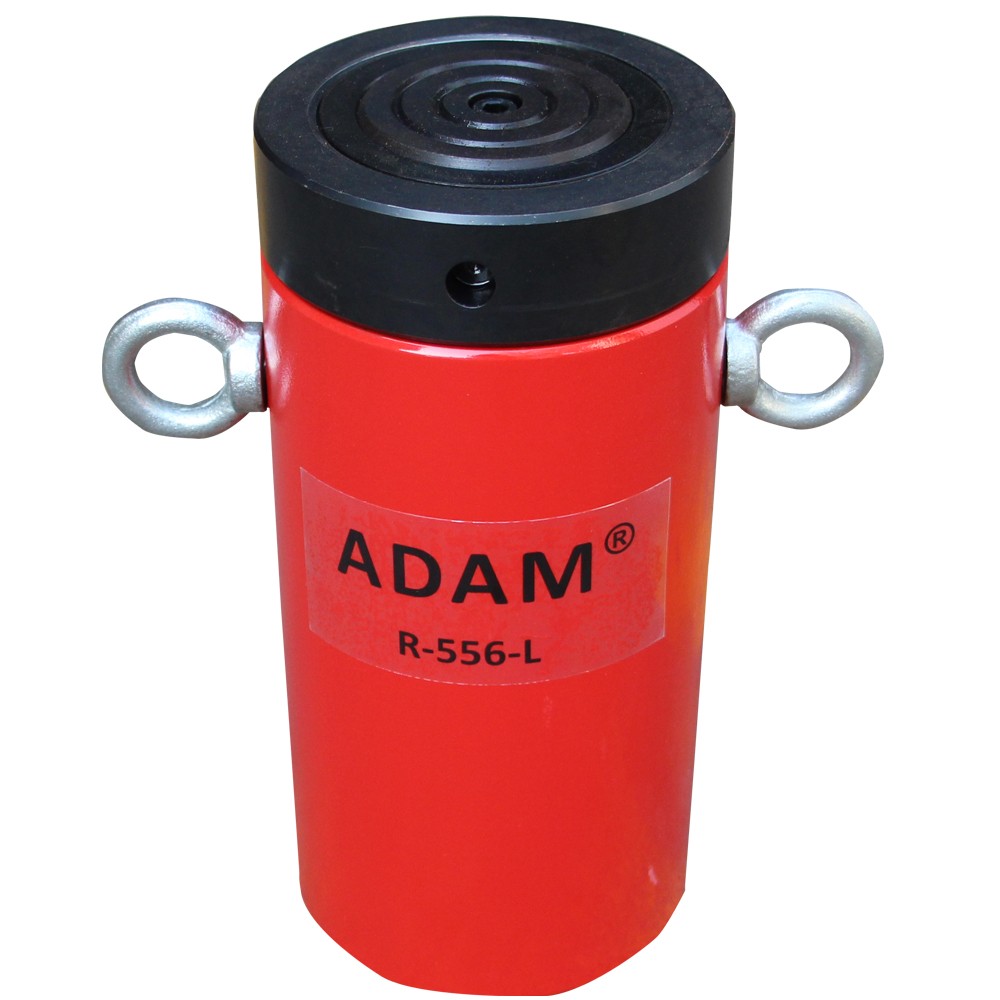

CLL-506 (R-556-L) 50 ton Lock Nut Cylinder with customized color.
Steel or Heavy Structure Support.
Bridge Lifting
More information on detail, please feel free to contact me
Additional Information
| Model No. | CLL-502 |
|---|---|
| Working Type | Single Acting |
| Working Pressure | 700 bar |
| Capacity | 50 ton |
| Stroke | 50 mm |
| Collapsed Height | 164 mm |
| Outside Diameter | 125 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
