Details
Capacity: 20 - 150 ton
Stroke: 50 - 250 mm
Maximum Operating Pressure: 700 bar
• Composite bearings prevent metal-to-metal contact,
increasing cylinder life and resistance to side-loads of
up to 10%
• Hard-Coat finish on all surfaces resists damage and
extends cylinder life
• Handles included on all models
• Steel base plate and saddle for protection against loadinduced
damage
• Integral stop ring prevents plunger over-travel and is
capable of withstanding the full cylinder capacity
• High strength return spring for rapid cylinder retraction
• CR-400 coupler and dustcap included on all models
• All cylinders meet ASME B-30.1 and ISO 10100 standards.
All RAC-cylinders are
equipped with bolt-on
removable hardened steel
saddles.

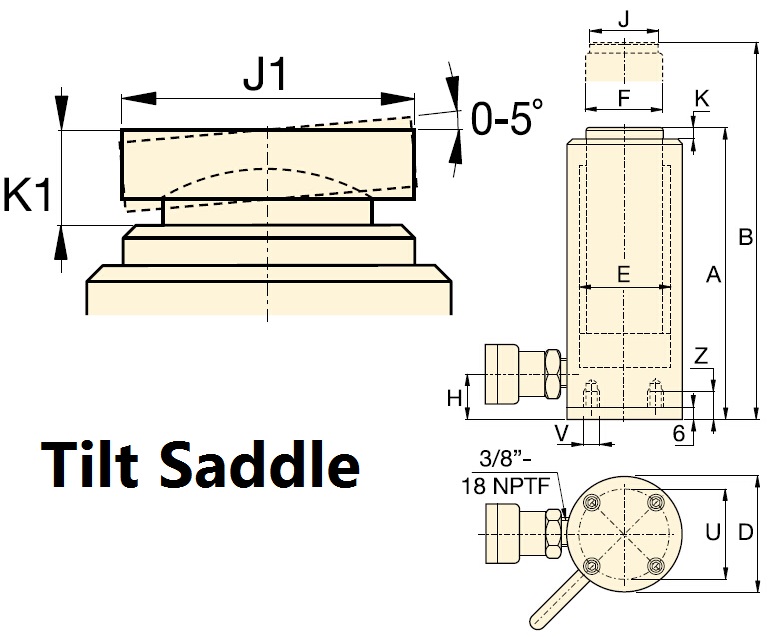

Check the parameters and confirm the model No.
Model No. |
Capacity 700 bar |
Stroke (mm) |
Oil Capacity (cm3) |
Effective Area (cm2) |
Collapsed Height A (mm) |
Extended Height B (mm) |
Outside Diameter D (mm) |
Bore Diameter E (mm) |
Plunger Diameter F (mm) |
Weight (kg) |
RAC-202 | 20 (218) | 50 | 156 | 31,2 | 174 | 224 | 85 | 63 | 50 | 3,6 |
RAC-204 | 100 | 312 | 31,2 | 224 | 324 | 85 | 63 | 50 | 4,1 | |
RAC-206 | 150 | 468 | 31,2 | 274 | 424 | 85 | 63 | 50 | 4,6 | |
RAC-302 | 30 (309) | 50 | 221 | 44,2 | 181 | 231 | 100 | 75 | 60 | 4,5 |
RAC-304 | 100 | 442 | 44,2 | 231 | 331 | 100 | 75 | 60 | 5,2 | |
RAC-306 | 150 | 663 | 44,2 | 281 | 431 | 100 | 75 | 60 | 5,9 | |
RAC-502 | 50 (496) | 50 | 354 | 70,9 | 186 | 236 | 130 | 95 | 80 | 8,5 |
RAC-504 | 100 | 709 | 70,9 | 236 | 336 | 130 | 95 | 80 | 9,8 | |
RAC-506 | 150 | 1063 | 70,9 | 286 | 436 | 130 | 95 | 80 | 11,1 | |
RAC-1004 | 100 (1002) | 100 | 1431 | 143,1 | 271 | 271 | 180 | 135 | 110 | 19,6 |
RAC-1006 | 150 | 2147 | 143,1 | 321 | 471 | 180 | 135 | 110 | 21,9 | |
RAC-1008 | 200 | 2863 | 143,1 | 371 | 571 | 180 | 135 | 110 | 24,2 | |
RAC-1506 | 150 (1589) | 150 | 3405 | 227,0 | 343 | 493 | 230 | 170 | 140 | 33,3 |

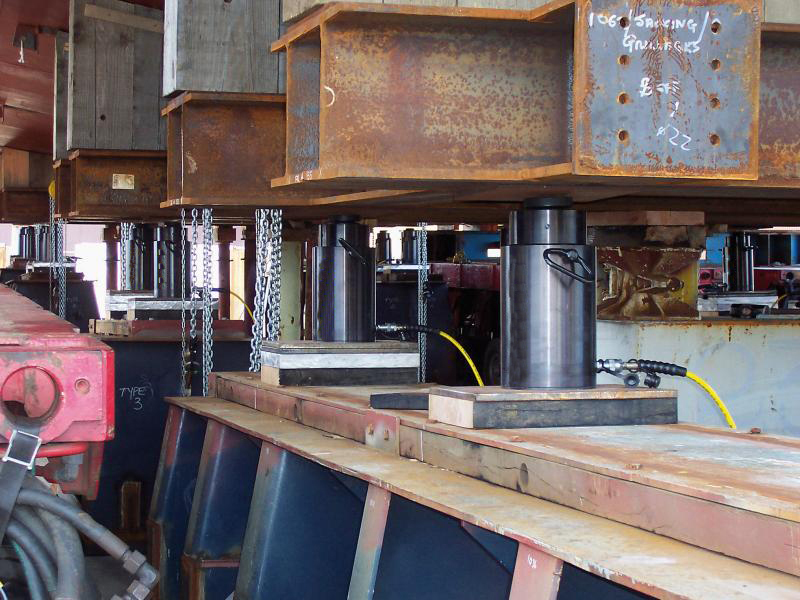

Steel Construction Support or Lifting.
Single acting RAC series aluminium cylinder.
Additional Information
Model No. | RAC-202 |
---|---|
Working Type | Single Acting |
Working Pressure | 700 bar |
Capacity | 20 ton |
Stroke | 50 mm |
Collapsed Height | 174 mm |
Outside Diameter | 85 mm |
Weight (g) | N/A |
Package | Wooden Case |
