Details
Single-Acting, General Purpose Cylinders
Capacity: 5 - 95 ton
Stroke: 16 - 362 mm
Maximum Operating Pressure: 700 bar
• Unique GR2 Bearing Design, reduces wear, extending life
• Collar threads, plunger threads and base mounting holes
enable easy fixturing (on most models)
• Designed for use in all positions
• High strength alloy steel for durability
• Redesigned cylinder thread protector for ease of use
• Heavy-duty, pretensioned spring improves retraction speed
• Baked enamel finish for increased corrosion resistance
• CR-400 coupler and dust cap included on all models
• Plunger wiper reduces contamination, extending cylinder life.
All RC cylinders are
equipped with hardened
removable grooved saddles.
|
Model
|
Cylinder |
Stroke |
Cylinder |
Oil |
Collapsed |
Weight |
|
ton (kN) |
mm |
cm2 |
cm3 |
mm |
kg |
|
|
RC-50** |
5 |
16 |
6,5 |
10 |
41 |
1 |
|
RC-51 |
25 |
6,5 |
16 |
110 |
1 |
|
|
RC-53 |
76 |
6,5 |
50 |
165 |
1,5 |
|
|
RC-55* |
127 |
6,5 |
83 |
215 |
1,9 |
|
|
RC-57 |
177 |
6,5 |
115 |
273 |
2,4 |
|
|
RC-59 |
232 |
6,5 |
151 |
323 |
2,8 |
|
|
RC-101 |
10 |
26 |
14,5 |
38 |
89 |
1,8 |
|
RC-102* |
54 |
14,5 |
78 |
121 |
2,3 |
|
|
RC-104 |
105 |
14,5 |
152 |
171 |
3,3 |
|
|
RC-106* |
156 |
14,5 |
226 |
247 |
4,4 |
|
|
RC-108 |
203 |
14,5 |
294 |
298 |
5,4 |
|
|
RC-1010* |
257 |
14,5 |
373 |
349 |
6,4 |
|
|
RC-1012 |
304 |
14,5 |
441 |
400 |
6,8 |
|
|
RC-1014 |
356 |
14,5 |
516 |
450 |
8,2 |
|
|
RC-151 |
15 |
25 |
20,3 |
51 |
124 |
3,3 |
|
RC-152 |
51 |
20,3 |
104 |
149 |
4,1 |
|
|
RC-154* |
101 |
20,3 |
205 |
200 |
5 |
|
|
RC-156* |
152 |
20,3 |
308 |
271 |
6,8 |
|
|
RC-158 |
203 |
20,3 |
411 |
322 |
8,2 |
|
|
RC-1510 |
254 |
20,3 |
516 |
373 |
9,5 |
|
|
RC-1512 |
305 |
20,3 |
619 |
423 |
10,9 |
|
|
RC-1514 |
356 |
20,3 |
723 |
474 |
11,8 |
|
|
RC-251 |
25 |
26 |
33,2 |
86 |
139 |
5,9 |
|
RC-252* |
50 |
33,2 |
166 |
165 |
6,4 |
|
|
RC-254* |
102 |
33,2 |
339 |
215 |
8,2 |
|
|
RC-256* |
158 |
33,2 |
525 |
273 |
10 |
|
|
RC-258 |
210 |
33,2 |
697 |
323 |
12,2 |
|
|
RC-2510 |
261 |
33,2 |
867 |
374 |
14,1 |
|
|
RC-2512 |
311 |
33,2 |
1033 |
425 |
16,3 |
|
|
RC-2514* |
362 |
33,2 |
1202 |
476 |
17,7 |
|
|
RC-308 |
30 (295) |
209 |
42,1 |
880 |
387 |
18,1 |
|
RC-502 |
50 |
51 |
71,2 |
362 |
176 |
15 |
|
RC-504 |
101 |
71,2 |
719 |
227 |
19,1 |
|
|
RC-506* |
159 |
71,2 |
1131 |
282 |
23,1 |
|
|
RC-5013 |
337 |
71,2 |
2399 |
460 |
37,6 |
|
|
RC-756 |
75 |
156 |
102,6 |
1601 |
285 |
29,5 |
|
RC-7513 |
333 |
102,6 |
3417 |
492 |
59 |
|
|
RC-1006 |
95 |
168 |
133,3 |
2239 |
357 |
59 |
|
RC-10010 |
260 |
133,3 |
3466 |
449 |
72,6 |

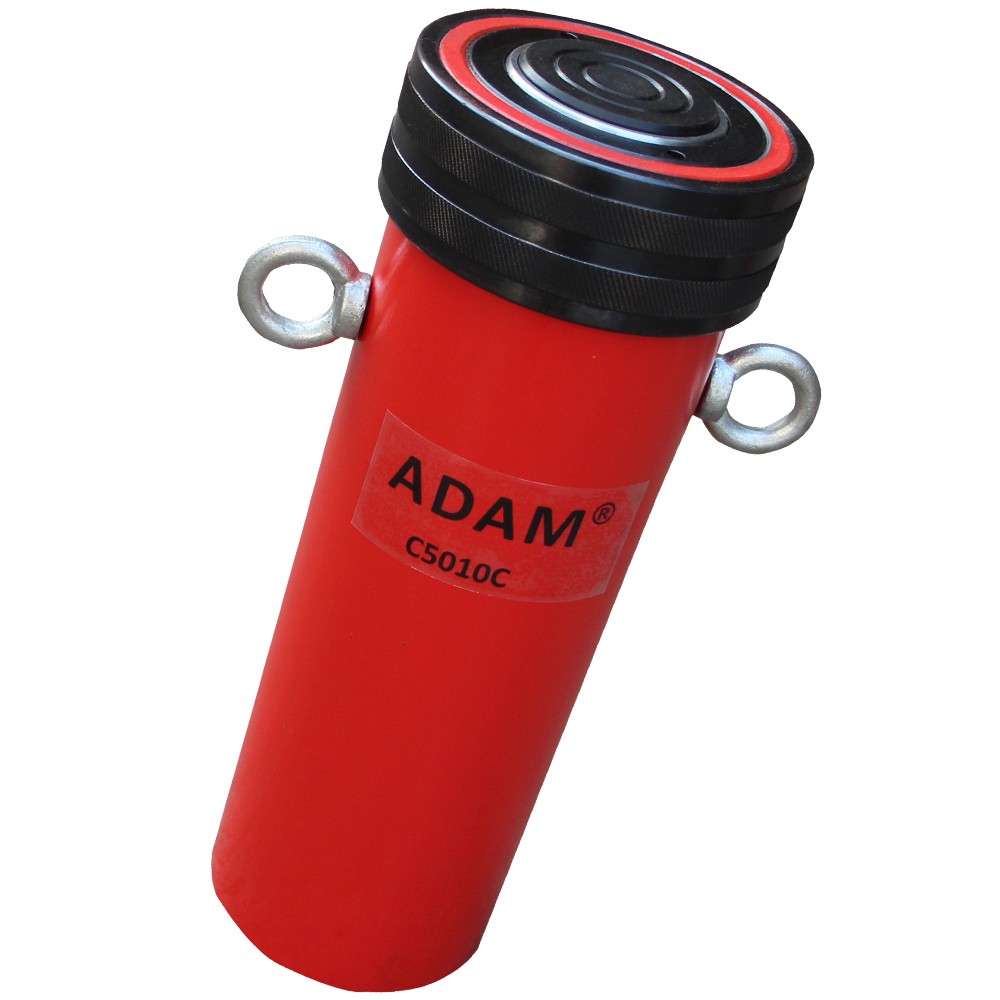

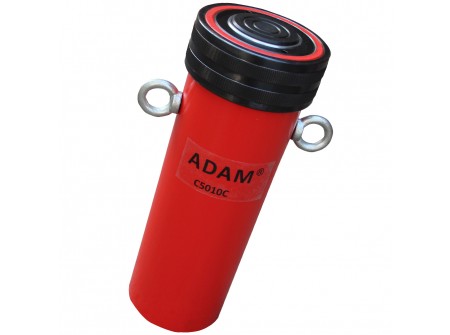

RC-5010(C5010C) customized Cylinder with Orange Color:

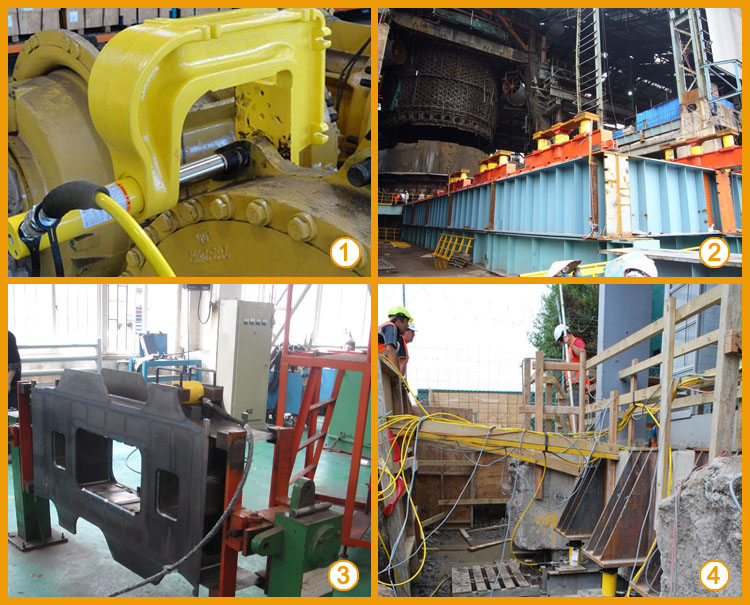

General Purpose Cylinders Applications
Hydraulic Cylinder - Hand Pump Set
Hydraulic Cylinder and Hand Pump Set Package:
More information on detail, please feel free to contact me
Additional Information
| Model No. | RC-10010 |
|---|---|
| Working Type | Single Acting |
| Working Pressure | 700 bar |
| Capacity | 95 ton |
| Stroke | 260 mm |
| Collapsed Height | 449 mm |
| Outside Diameter | 177 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
