Details
RR-Series, Double-Acting Cylinders
Capacity: 10 - 520 ton
Stroke: 57 - 1219 mm
Maximum Operating Pressure: 700 bar
• Collar threads, plunger threads and base mounting holes
for easy fixturing (on most models)
• Baked enamel finish for increased corrosion resistance
• Removable hardened saddles protect plunger during lifting
and pressing
• Built-in safety valve prevents accidental
over-pressurization
• CR-400 couplers included on all models
• Plunger wiper reduces contamination,
extending cylinder life.

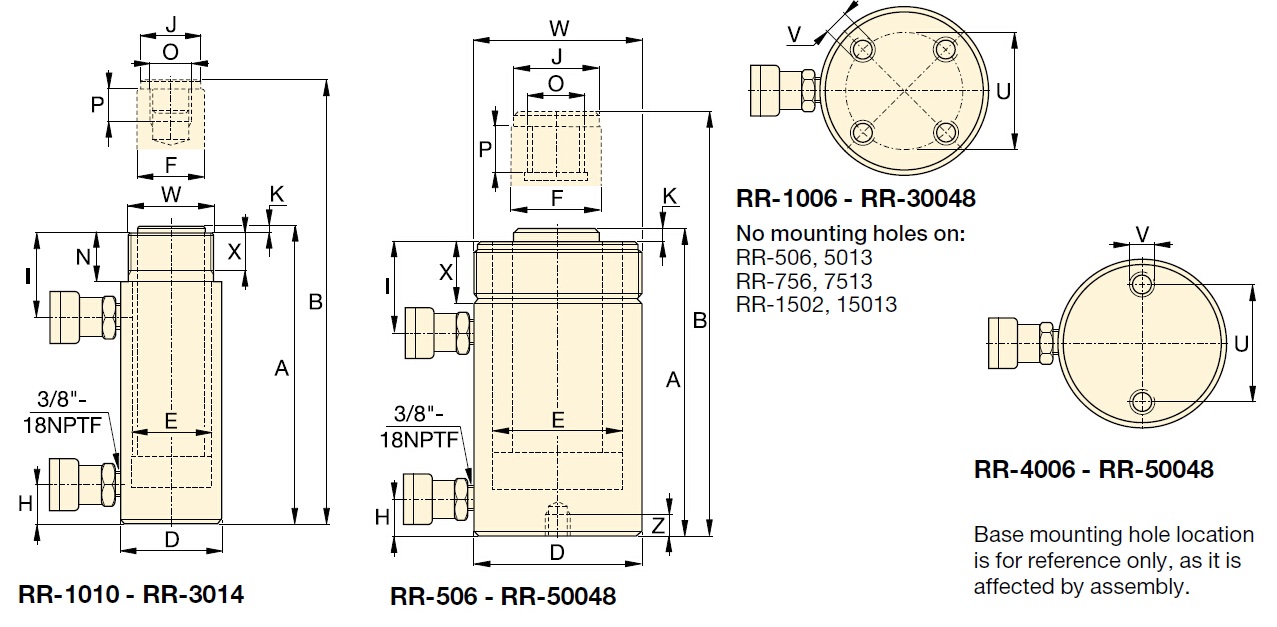

RR-Series cylinders up to
75 ton have plunger
mounting holes for
installation of CAT-Series
tilt saddles.
|
Model |
Cylinder |
Stroke |
Maximum |
Cylinder |
Oil |
Collapsed |
Extended |
Outside |
Weight |
|||
|
(tons) |
(in) |
(ton) |
(in2) |
(in3) |
||||||||
|
Push |
Pull |
Push |
Pull |
Push |
Pull |
(in) |
(in) |
(in) |
(lbs) |
|||
|
RR-1010* |
10 |
10.00 |
11.1 |
4.0 |
2.23 |
0.80 |
22.33 |
8.00 |
16.13 |
26.13 |
2.88 |
28 |
|
RR-1012* |
12.00 |
11.1 |
4.0 |
2.23 |
0.80 |
26.80 |
9.00 |
18.00 |
30.00 |
2.88 |
31 |
|
|
RR-308* |
30 |
8.25 |
32.5 |
6.0 |
6.51 |
3.00 |
53.67 |
25.00 |
15.25 |
23.50 |
4.00 |
40 |
|
RR-3014* |
14.50 |
32.5 |
6.0 |
6.51 |
3.00 |
92.70 |
43.00 |
21.63 |
36.13 |
4.00 |
64 |
|
|
RR-506 |
50 |
6.13 |
55.3 |
11.8 |
11.06 |
3.40 |
67.77 |
21.00 |
13.06 |
19.19 |
5.00 |
67 |
|
RR-5013 |
13.13 |
55.3 |
11.8 |
11.06 |
3.40 |
145.17 |
44.00 |
20.06 |
33.19 |
5.00 |
115 |
|
|
RR-5020 |
20.13 |
55.3 |
11.8 |
11.06 |
3.40 |
222.56 |
68.00 |
28.88 |
49.00 |
5.00 |
150 |
|
|
RR-756 |
75 |
6.13 |
79.6 |
17.6 |
15.92 |
4.90 |
97.58 |
29.00 |
13.69 |
19.81 |
5.75 |
92 |
|
RR-7513 |
13.13 |
79.6 |
17.6 |
15.92 |
4.90 |
209.00 |
64.00 |
20.69 |
33.81 |
5.75 |
150 |
|
|
RR-1006 |
100 |
6.63 |
103.2 |
48.0 |
20.65 |
9.60 |
136.93 |
63.00 |
14.06 |
20.69 |
7.00 |
135 |
|
RR-10013 |
13.13 |
103.2 |
48.0 |
20.65 |
9.60 |
271.17 |
126.00 |
20.63 |
33.75 |
7.00 |
205 |
|
|
RR-10018 |
18.13 |
103.2 |
48.0 |
20.65 |
9.60 |
374.44 |
174.00 |
27.06 |
45.19 |
7.00 |
260 |
|
|
RR-1502 |
150 |
2.25 |
153.5 |
74.0 |
30.71 |
14.80 |
69.11 |
33.00 |
7.72 |
9.44 |
8.00 |
110 |
|
RR-1506 |
6.13 |
153.5 |
74.0 |
30.71 |
14.80 |
188.28 |
91.00 |
15.19 |
21.31 |
8.00 |
205 |
|
|
RR-15013 |
13.13 |
153.5 |
74.0 |
30.71 |
14.80 |
403.27 |
194.00 |
22.20 |
35.31 |
8.00 |
275 |
|
|
RR-15032 |
32.13 |
153.5 |
74.0 |
30.71 |
14.80 |
986.84 |
475.00 |
43.94 |
76.06 |
8.00 |
525 |
|
|
RR-2006 |
200 |
6.00 |
221.0 |
112.5 |
44.21 |
22.50 |
265.28 |
135.00 |
16.94 |
22.94 |
9.75 |
325 |
|
RR-20013 |
13.00 |
221.0 |
112.5 |
44.21 |
22.50 |
574.78 |
293.00 |
23.94 |
36.94 |
9.75 |
440 |
|
|
RR-20018 |
18.00 |
221.0 |
112.5 |
44.21 |
22.50 |
795.85 |
396.00 |
30.13 |
48.13 |
9.75 |
450 |
|
|
RR-20024 |
24.00 |
221.0 |
112.5 |
44.21 |
22.50 |
1061.00 |
528.00 |
36.13 |
60.13 |
9.75 |
616 |
|
|
RR-20036 |
36.00 |
221.0 |
112.5 |
44.21 |
22.50 |
1592.00 |
792.00 |
48.13 |
84.13 |
9.75 |
845 |
|
|
RR-20048 |
48.00 |
221.0 |
112.5 |
44.21 |
22.50 |
2122.00 |
1056.00 |
60.13 |
108.13 |
9.75 |
1065 |
|
|
RR-3006 |
300 |
6.00 |
354.6 |
190.0 |
70.93 |
38.00 |
425.56 |
228.00 |
19.13 |
25.13 |
12.25 |
441 |
|
RR-30012 |
12.00 |
354.6 |
190.0 |
70.93 |
38.00 |
851.12 |
456.00 |
25.13 |
37.13 |
12.25 |
608 |
|
|
RR-30018 |
18.00 |
354.6 |
190.0 |
70.93 |
38.00 |
1277.00 |
684.00 |
31.13 |
49.13 |
12.25 |
776 |
|
|
RR-30024 |
24.00 |
354.6 |
190.0 |
70.93 |
38.00 |
1702.00 |
912.00 |
37.13 |
61.13 |
12.25 |
1034 |
|
|
RR-30036 |
36.00 |
354.6 |
190.0 |
70.93 |
38.00 |
2553.00 |
1368.00 |
49.13 |
85.13 |
12.25 |
1385 |
|
|
RR-30048 |
48.00 |
354.6 |
190.0 |
70.93 |
38.00 |
3405.00 |
1824.00 |
61.13 |
109.13 |
12.25 |
1720 |
|
|
RR-4006 |
400 |
6.00 |
475.4 |
255.0 |
95.09 |
51.00 |
570.51 |
306.00 |
21.19 |
27.19 |
14.13 |
670 |
|
RR-40012 |
12.00 |
475.4 |
255.0 |
95.09 |
51.00 |
1141.00 |
612.00 |
27.19 |
39.19 |
14.13 |
880 |
|
|
RR-40018 |
18.00 |
475.4 |
255.0 |
95.09 |
51.00 |
1712.00 |
918.00 |
33.19 |
51.19 |
14.13 |
1000 |
|
|
RR-40024 |
24.00 |
475.4 |
255.0 |
95.09 |
51.00 |
2282.00 |
1224.00 |
39.19 |
63.19 |
14.13 |
1317 |
|
|
RR-40036 |
36.00 |
475.4 |
255.0 |
95.09 |
51.00 |
3423.00 |
1836.00 |
51.19 |
87.19 |
14.13 |
1746 |
|
|
RR-40048 |
48.00 |
475.4 |
255.0 |
95.09 |
51.00 |
4564.00 |
2448.00 |
63.19 |
111.19 |
14.13 |
2162 |
|
|
RR-5006 |
500 |
6.00 |
565.7 |
315.0 |
113.15 |
63.00 |
678.00 |
378.00 |
22.75 |
28.75 |
15.63 |
953 |
|
RR-50012 |
12.00 |
565.7 |
315.0 |
113.15 |
63.00 |
1358.00 |
756.00 |
28.75 |
40.75 |
15.63 |
1300 |
|
|
RR-50018 |
18.00 |
565.7 |
315.0 |
113.15 |
63.00 |
2037.00 |
1134.00 |
34.75 |
52.75 |
15.63 |
1500 |
|
|
RR-50024 |
24.00 |
565.7 |
315.0 |
113.15 |
63.00 |
2716.00 |
1512.00 |
40.75 |
64.75 |
15.63 |
1800 |
|
|
RR-50036 |
36.00 |
565.7 |
315.0 |
113.15 |
63.00 |
4074.00 |
2268.00 |
52.75 |
88.75 |
15.63 |
2210 |
|
|
RR-50048 |
48.00 |
565.7 |
315.0 |
113.15 |
63.00 |
5431.00 |
3024.00 |
64.75 |
112.75 |
15.63 |
2700 |
|
More information on detail, please feel free to contact me
Additional Information
| Model No. | RR-15032 |
|---|---|
| Working Type | Double Acting |
| Working Pressure | 700 bar |
| Capacity | 140 ton |
| Stroke | 815 mm |
| Collapsed Height | 1116 mm |
| Outside Diameter | 203 mm |
| Weight (g) | N/A |
| Package | Wooden Case |
Customer Reviews
4 Item(s)
- double acting cylinder Review by Mehmet AKYÜZ
-
the quality is cool at this price. (Posted on 4/27/2016)Price Quality Value - why Feedback Review by Ahmed Khan S
-
quality is really good. more chance in the future. (Posted on 3/30/2016)Price Price Quality Quality Value Value - adam style Review by Biege
-
Enerpac Cylinder, Adam Style is Pretty Cool (Posted on 3/30/2016)Price Price Quality Quality Value Value - double acting cylinder Review by Benjamin
-
Price is high, but (Bruce) is great (Posted on 3/30/2016)Price Price Quality Quality Value Value
