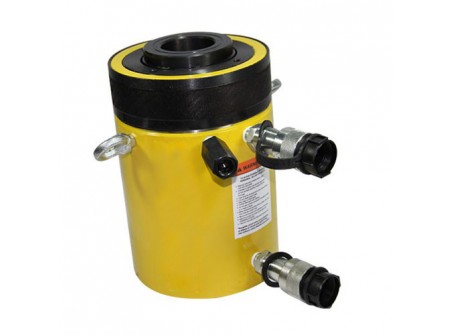

RRH-Series, Hollow Plunger Cylinders
Capacity: 13 - 95 ton
Stroke: 38 - 258 mm
Center Hole Diameter: 33.3 - 79.2 mm
Maximum Operating Pressure: 700 bar
• Relief valves prevent damage in case of overpressurisation
• Baked enamel finish for increased corrosion resistance
• Collar threads enable easy fixturing
(except RRH-1001 and RRH-1508)
• Double-acting version for fast retraction
• Nickel-plated, floating center tube increases product life
• Hollow plunger allows for both pull and push forces
• CR-400 coupler and dust cap included on all models
• Plunger wiper reduces contamination,
extending cylinder life.
All RRH-Series cylinders
are equipped with smooth
saddles.

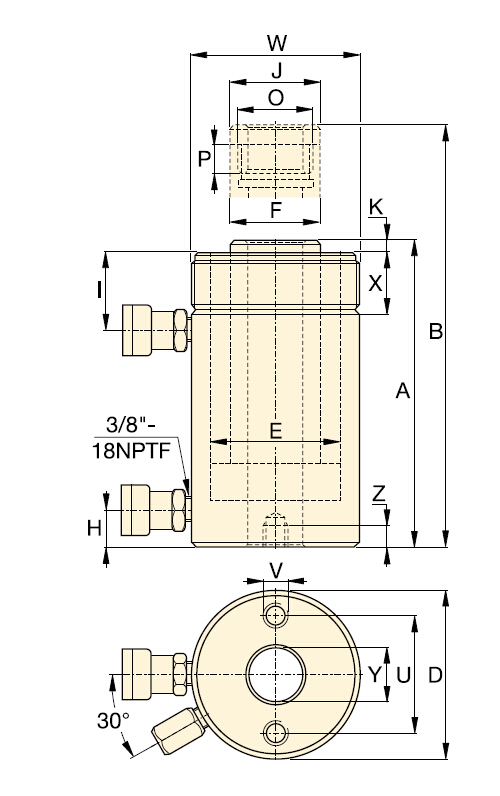

Check the parameters and confirm the model No.
Model No. | Capacity | Stroke |
Coll. Height A |
Ext. Height B |
Out. Dia. D |
Bore Dia. E |
Plgr. Dia . F |
Center Hole Dia . Y |
Oil Capacity cm3) |
Effective Area |
Cylinder Capacity (kN) |
Weight
|
|||
ton | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Advance | Retract | Advance | Retract | Advance | Retract | (kg) | |
RRH-307 | 30 | 178 | 330 | 508 | 114 | 88,9 | 63,5 | 33,3 | 829 | 541 | 46,6 | 30,4 | 326 | 213 | 21 |
RRH-3010 | 258 | 431 | 689 | 114 | 88,9 | 63,5 | 1202 | 784 | 46,6 | 30,4 | 326 | 213 | 27 | ||
RRH-603 | 60 | 89 | 247 | 336 | 159 | 123,9 | 91,9 | 53,8 | 733 | 482 | 82,3 | 54,2 | 576 | 380 | 28 |
RRH-606 | 166 | 323 | 489 | 159 | 123,9 | 91,9 | 1366 | 900 | 82,3 | 54,2 | 576 | 380 | 35 | ||
RRH-6010 | 257 | 438 | 695 | 159 | 123,9 | 91,9 | 2115 | 1393 | 82,3 | 54,2 | 576 | 380 | 45 | ||
RRH-1001 | 95 | 38 | 165 | 203 | 212 | 165,1 | 127,0 | 79,2 | 505 | 333 | 133,0 | 87,4 | 931 | 612 | 33 |
RRH-1003 | 76 | 254 | 330 | 212 | 165,1 | 127,0 | 1011 | 666 | 133,0 | 87,4 | 931 | 612 | 61 | ||
RRH-1006 | 153 | 342 | 495 | 212 | 165,1 | 127,0 | 2035 | 1337 | 133,0 | 87,4 | 931 | 612 | 79 | ||
RRH-10010 | 257 | 460 | 717 | 212 | 165,1 | 127,0 | 3420 | 2246 | 133,0 | 87,4 | 931 | 612 | 106 | ||
RRH-1508 | 145 | 203 | 349 | 552 | 247 | 190,5 | 152,4 | 4144 | 2083 | 204,1 | 102,6 | 1429 | 718 | 111 |

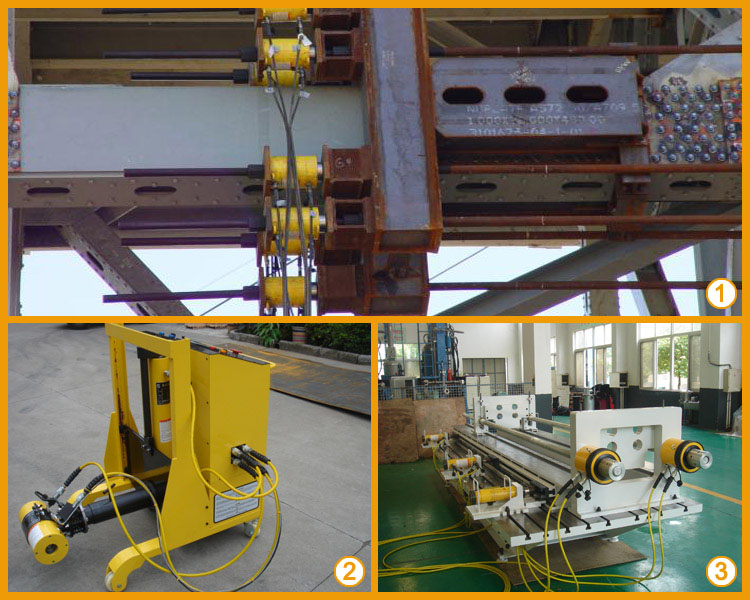

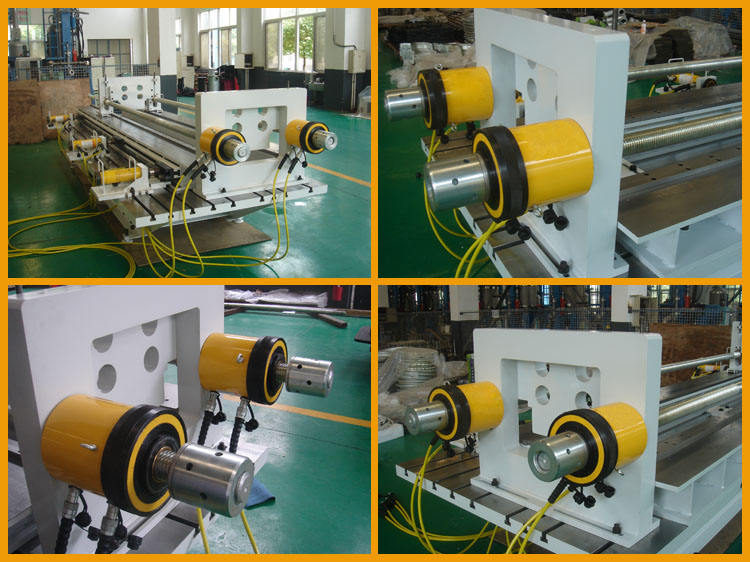

Versatility in Testing,
Maintenance and Tensioning Applications
Additional Information
Model No. | RRH-307 |
---|---|
Working Type | Double Acting |
Working Pressure | 700 bar |
Capacity | 30 ton |
Stroke | 178 mm |
Center Hole Dia. | 33.3 mm |
Collapsed Height | 330 mm |
Outside Diameter | 114 mm |
Weight (g) | N/A |
Package | Wooden Case |
