Details

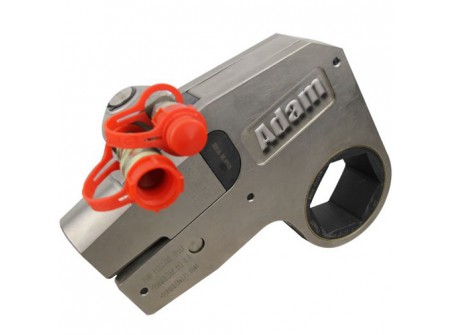

W-Series, Low Profile Hexagon Wrenches
Maximum Torque at 700 bar:
47450 Nm
Hexagon Range:
24-115 mm / 1⅛ - 4⅝ ”
Nose Radius:
31 - 87,5 mm
Maximum Operating Pressure:
700 bar
Simplicity
• Includes handle to improve tool handling and safety
• No tools are needed for changing the hexagon cassettes
• Innovative, pinless wrench construction incorporates
quick release cylinder and automatic crank engagement
• Single 360° hydraulic swivel manifold complete with
screw lock couplings increases wrench and hose
manoeuvrability.
Design
• Cylinders and low profile cassettes have been engineered
to give ultra slim, compact low clearance tooling with a
small nose radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Nut sizes covered range from 24 - 115 mm (1⅛ - 4⅝ inch)
• Optimized strength-to-weight ratio
• Fast operation due to the large nut rotation per wrench
cycle (30 degree rotation angle) and rapid return stroke.
Reliability
• All wrenches are nickel-plated for excellent corrosion
protection and improved durability in harsh environments
• All wrenches are fitted with bronze bushings to ensure
the ratchet will never seize in the sideplates, thus
eliminating costly repairs.
Accuracy
• Constant torque output provides high accuracy ± 3%
across the full stroke
• In-line reaction foot ensures accuracy by reducing
internal deflections.

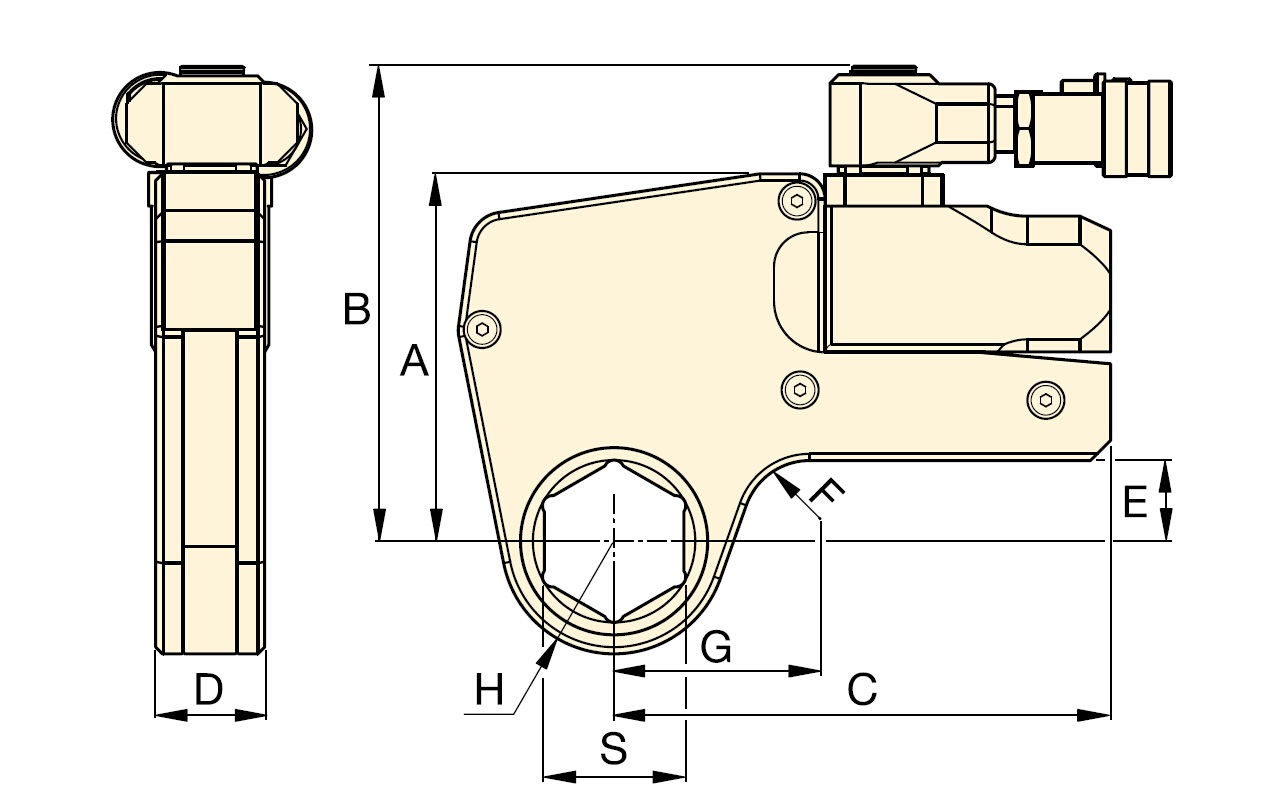

| Size（mm） | (Without hexagon cassette) Weight （kg） |
Model Number | |||||
| A | B | C | D | E | F | ||
| 109 | 141 | 148 | 32 | 24 | 20 | 1.4 | W2000 |
| 136 | 167 | 178 | 41 | 33 | 20 | 2 | W4000 |
| 172 | 205 | 208 | 53 | 42 | 25 | 3 | W8000 |
| 207 | 240 | 253 | 63 | 50 | 20 | 5 | W15000 |
| 227 | 266 | 297 | 77 | 48 | 35 | 7.7 | W22000 |
| 268 | 301 | 345 | 91 | 69-73 | 50 | 11.4 | W35000 |
Check the parameters and confirm the model No. of
the Steel Low Profile Hexagon Hydraulic Torque Wrench
| Model Number | Reduer Hex Nut Size Range |
Max.Torque Value | Min.Torque Value | |||
| (mm) | (inch) | (Nm) | (Ft .lbs) | (Nm) | (Ft .lbs) | |
| W2000 | 30 - 60 | 1 ⅛ - 2 ⅜ | 2712 | 2000 | 271 | 200 |
| W4000 | 36 - 85 | 1 5/16 - 3 ⅜ | 5423 | 4000 | 542 | 400 |
| W8000 | 50 - 105 | 1 ⅞ - 4 ⅛ | 10846 | 8000 | 1084 | 800 |
| W15000 | 65 - 115 | 2 7/16 - 4 ⅝ | 20337 | 15000 | 2033 | 1500 |
| W22000 | 75 - 135 | 2 15/16 - 5 3∕8 | 30510 | 22500 | 3050 | 2250 |
| W35000 | 80 - 155 | 3 ⅛ - 6 ⅛ | 47450 | 35000 | 4745 | 3500 |
More information on detail, please feel free to contact me
Additional Information
| Weight (g) | N/A |
|---|---|
| Model No. | W4000 |
| Wrench Type | Hexagonal |
| Working Type | Double Acting |
| Working Pressure | 700 bar |
| Torque Value | 542 - 5423 Nm |
| Hexagon Size | 36 mm, 41 mm, 46 mm, 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm |
| Material | Rigid Steel |
| Package | Al Alloy Box |
