Details

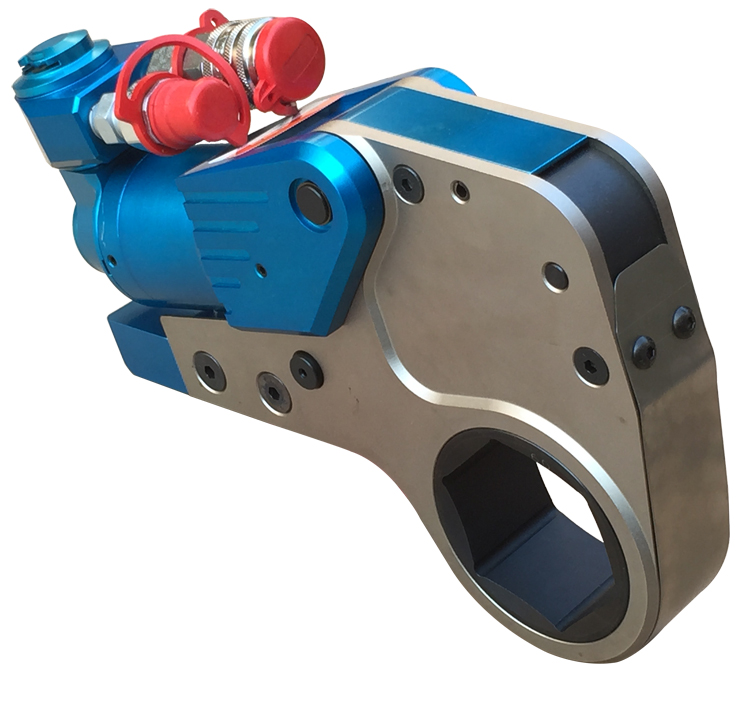

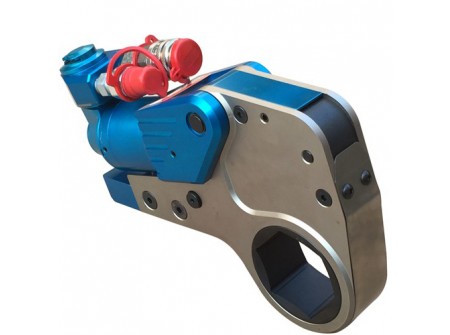

Al-Ti Alloy, Low Profile Hexagon Wrenches
Maximum Torque at 700 bar:
41882 Nm
Hexagon Range:
16 -115 mm
Maximum Operating Pressure:
700 bar
Simplicity
• Includes handle to improve tool handling and safety
• No tools are needed for changing the hexagon cassettes
• Innovative, pinless wrench construction incorporates
quick release cylinder and automatic crank engagement

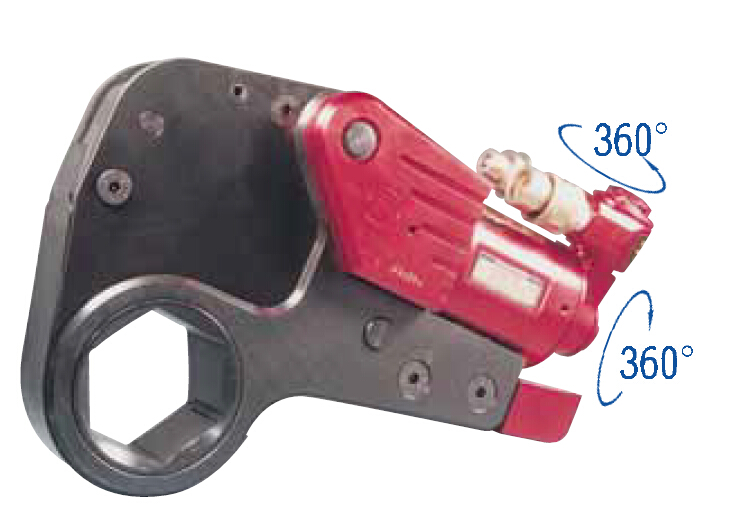

• Single 360° hydraulic swivel manifold complete with
screw lock couplings increases wrench and hose
manoeuvrability.
Design
• Cylinders and low profile cassettes have been engineered
to give ultra slim, compact low clearance tooling with a
small nose radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Optimized strength-to-weight ratio
• Fast operation due to the large nut rotation per wrench
cycle (30 degree rotation angle) and rapid return stroke.
Accuracy
• Constant torque output provides high accuracy ± 3%
across the full stroke
• In-line reaction foot ensures accuracy by reducing
internal deflections.
Check the parameters and confirm the model No. of
the XLCT Series Low Profile Hexagon Hydraulic Torque Wrench

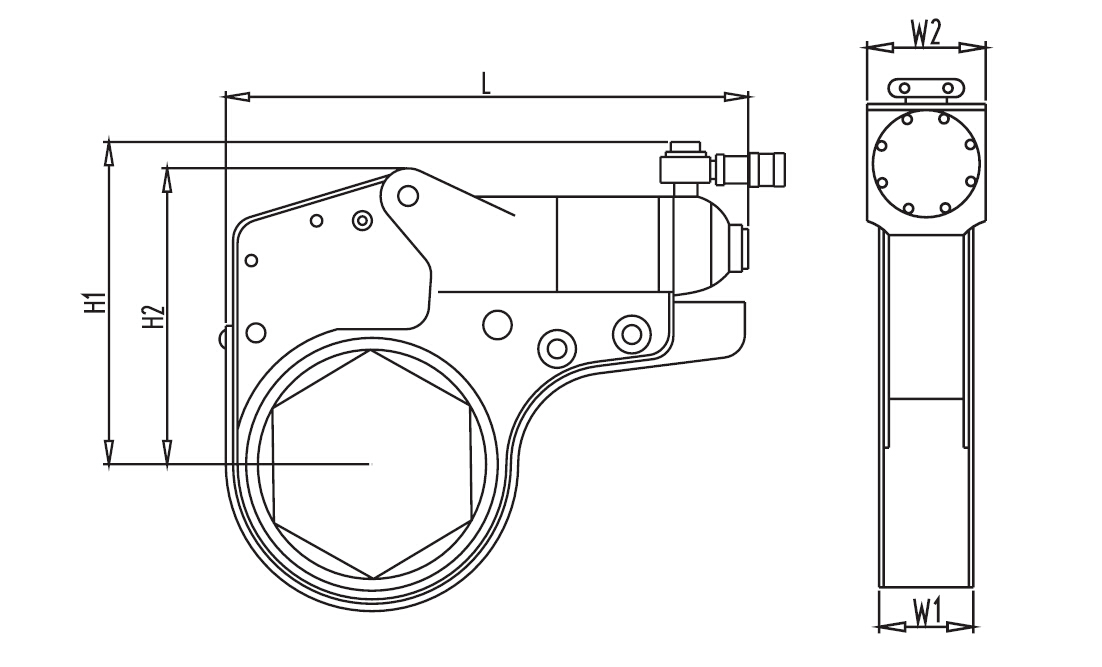

| Model No. | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 30XLCT |
| Torque Value | 232-2328 | 585-5858 | 1094-10941 | 1852-18521 | 4188-41882 |
| Bolt Dia. (mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| Nut A/F (mm) | 24-55 | 36-65 | 46-95 | 50-110 | 110-165 |
| L | 196.4 | 245 | 300 | 361 | 430 |
| H1 | 125.9 | 177 | 207 | 239 | 303 |
| H2 | 102.3 | 135.7 | 169 | 204 | 272 |
| W1 | 32 | 42 | 53 | 64 | 85 |
| W2 | 51 | 66 | 83 | 99 | 131 |

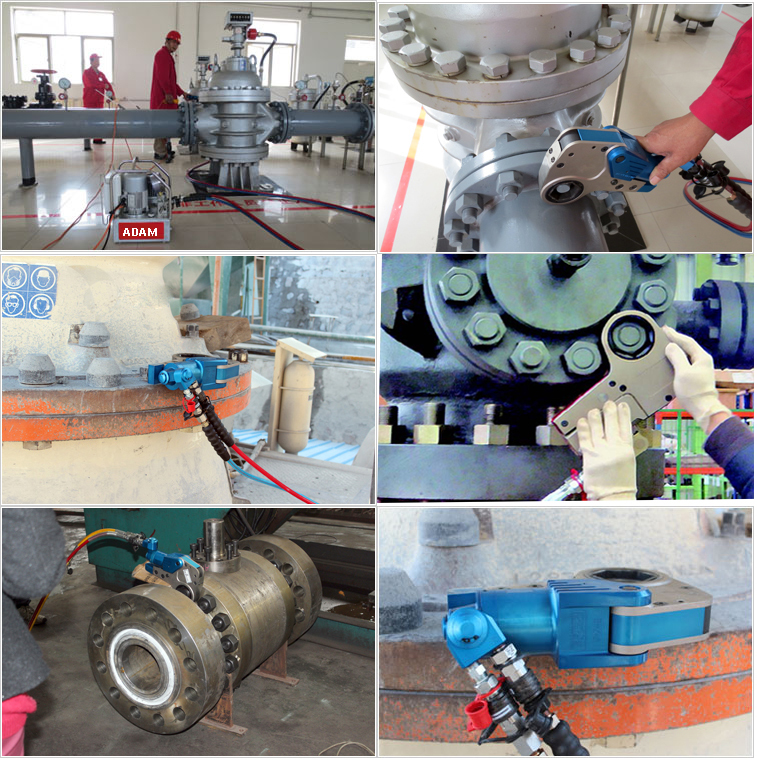

Al-Ti Alloy Low Profile Hydraulic Hexagon Torque Wrenches Applications.
Customized Al-Ti Alloy Hydraulic Hexagon Torque Wrenches
More information on detail, please feel free to contact me
Additional Information
| Weight (g) | N/A |
|---|---|
| Model No. | 14XLCT |
| Wrench Type | Hexagonal |
| Working Type | Double Acting |
| Working Pressure | 700 bar |
| Torque Value | 18521 Nm |
| Hexagon Size | 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100mm, 105mm, 110mm |
| Material | Al-Ti Alloy |

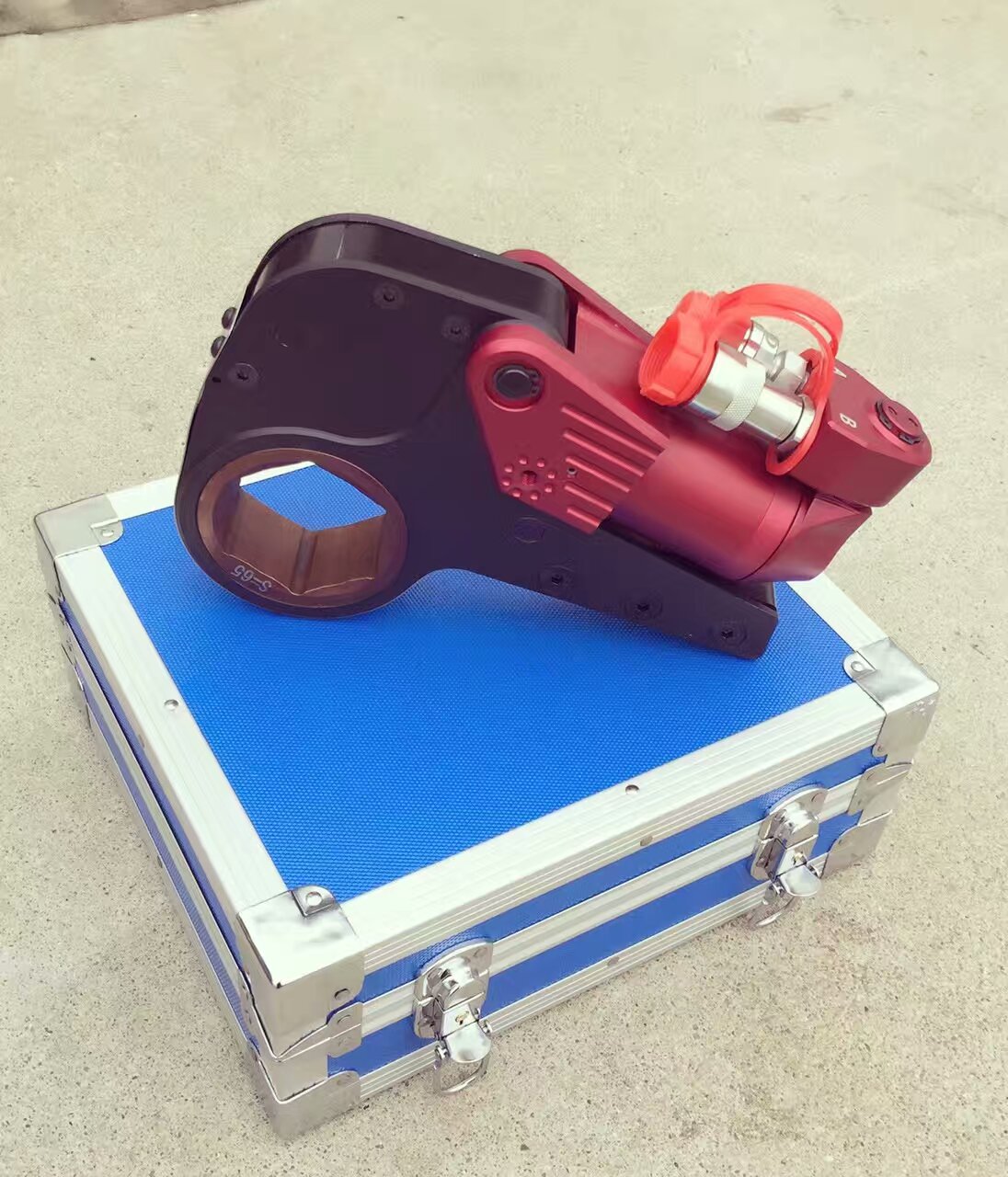

| Package | Al Alloy Box |
Customer Reviews
3 Item(s)
- the wrench pump is great Review by Gabriele Sampaolo
-
i like the wrench pump, good quality.Price Quality Value
the torque wrench with better price than in your web, why not good price directly ! (Posted on 12/18/2016) - I am Csaba Review by Csaba
-
I am Csaba from Hungary.Price Price Quality Quality Value Value
Thank you Bruce, the packing is beautiful. (Posted on 3/9/2016) - Al-Ti Alloy Torque Wrench Review by Ivan
-
XLCT series torque wrench, i need the customized color RED. (Posted on 3/9/2016)Price Price Quality Quality Value Value
3 Item(s)
