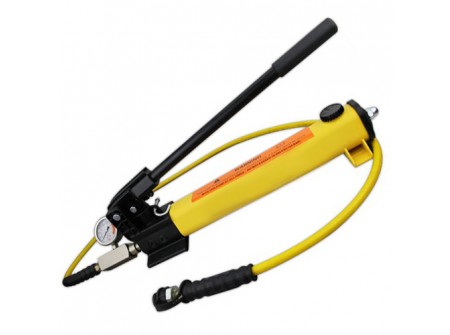

P-392 Hand Pump

Details

P-392, Lightweight Hand Pump

P series hand pumps;

• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon
encapsulated aluminium pump base for maximum
corrosion resistance
• Two-speed operation reduces handle strokes by
as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Integral 4-way valve on P-842 for operation of doubleacting
cylinders
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders
or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection.

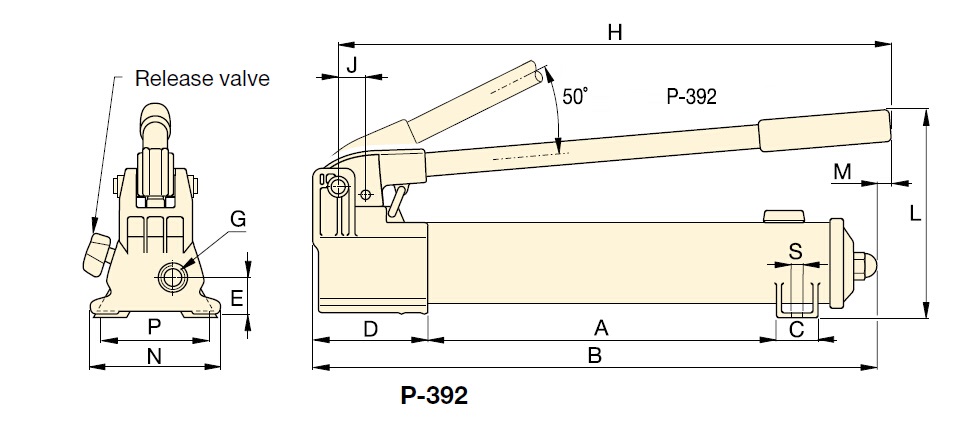

Size (mm)														Weight (kg)	Model No.
A	B	C	D	E	G	H	J	L	M	N	P	Q	S	Weight (kg)	Model No.
185	336	28	85	28	¼”-18 nPTF	319	19	143	–	95	80	–	7	2.4	P-141
344	533	36	99	33	⅜”-18 nPTF	522	30	177	16	120	–	–	–	4.1	P-391
185	336	28	85	28	¼”-18 nPTF	319	19	143	–	95	80	–	7	2.4	P-142*
344	509	36	85	28	¼”-18 nPTF	400	19	144	16	95	–	–	–	3.4	P-202
344	533	36	99	33	⅜”-18 nPTF	522	30	177	16	120	–	–	–	4.1	P-392*
337	552	45	133	35	⅜”-18 nPTF	527	30	228	–	181	153	35	10	8.2	P-802
337	552	45	133	20	⅜”-18 nPTF	527	30	228	–	181	153	36	10	10	P-842

Modle No.	Pump Type	Usable Oil Capacity (ml)	Pressure Rating (bar)		Oil Displacement per Stroke (ml)		Max. Handle Effort (kg)	Piston Stroke (mm)
Modle No.	Pump Type	Usable Oil Capacity (ml)	1st stage	2nd stage	1st stage	2nd stage	Max. Handle Effort (kg)	Piston Stroke (mm)
P-141	Single Speed	327	-	700	-	0.9	32.7	12.7
P-391	Single Speed	901	-	700	-	2.47	38.6	25.4
P-142*	Double Speed	327	13	700	3.62	0.9	35.4	12.7
P-202		901	13	700	3.62	0.9	28.6	12.7
P-392*		901	13	700	11.26	2.47	42.2	25.4
P-802		2540	27	700	39.33	2.47	43.1	25.4
P-842		2540	27	700	39.33	2.47	43.1	25.4
