Double Acting Steel Hand Pump

Details

Double Spped, Steel Hand Pump

P 464 series hand pumps;

• Reduced handle effort and ergonomic grip for less
operator fatigue
• Two-speed operation for fast and easy operation
(except P-39)
• Vent free reservoir eliminates spills
• Quick grip handle allows for easy transport
• Integral reservoir over-pressurization protection
• All steel construction, chrome plated plunger and wiper
system for durable, long lasting performance
• 4-way valving on the P-84 and P-464 for operation of
double-acting cylinders.

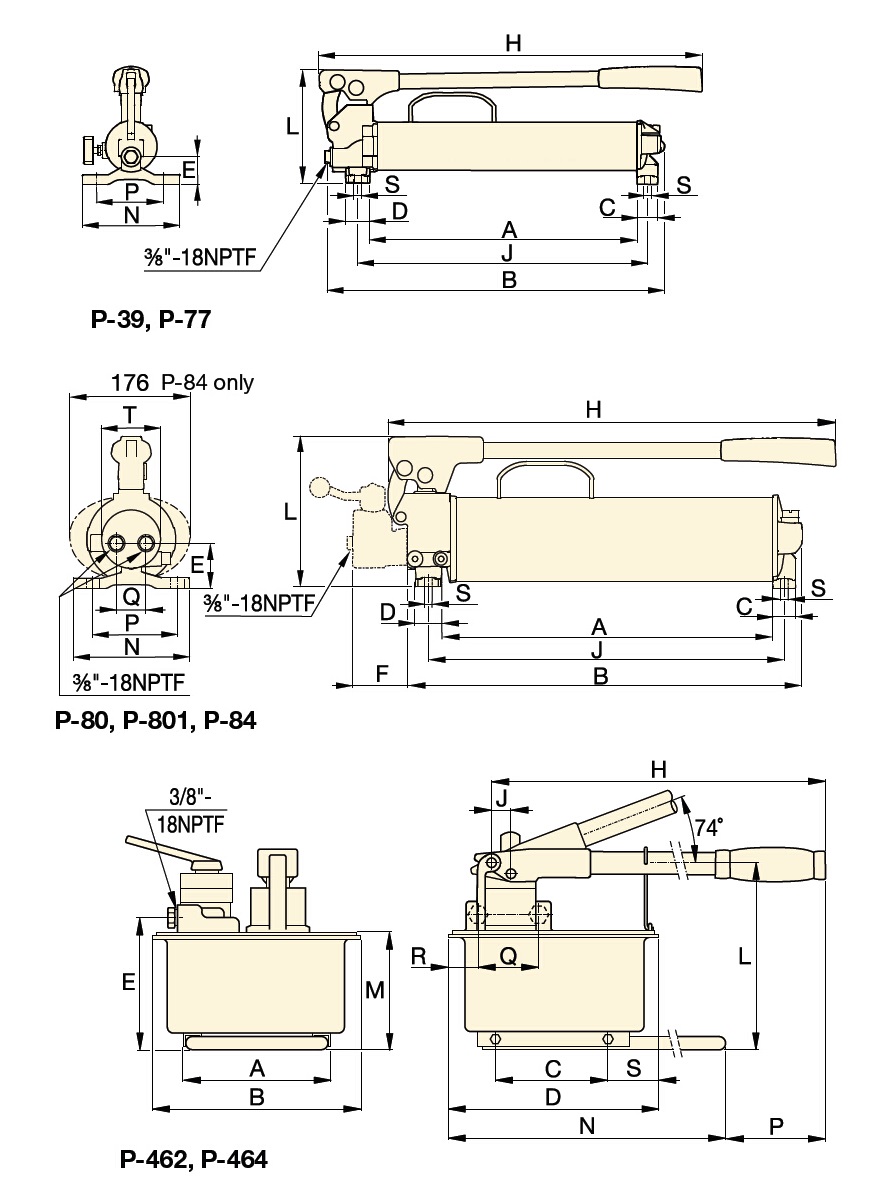

SIZE (mm)

Weight

（kg）

Model No.

383

480

–

550

416

163

–

140

111

–

8.4

–

6.2

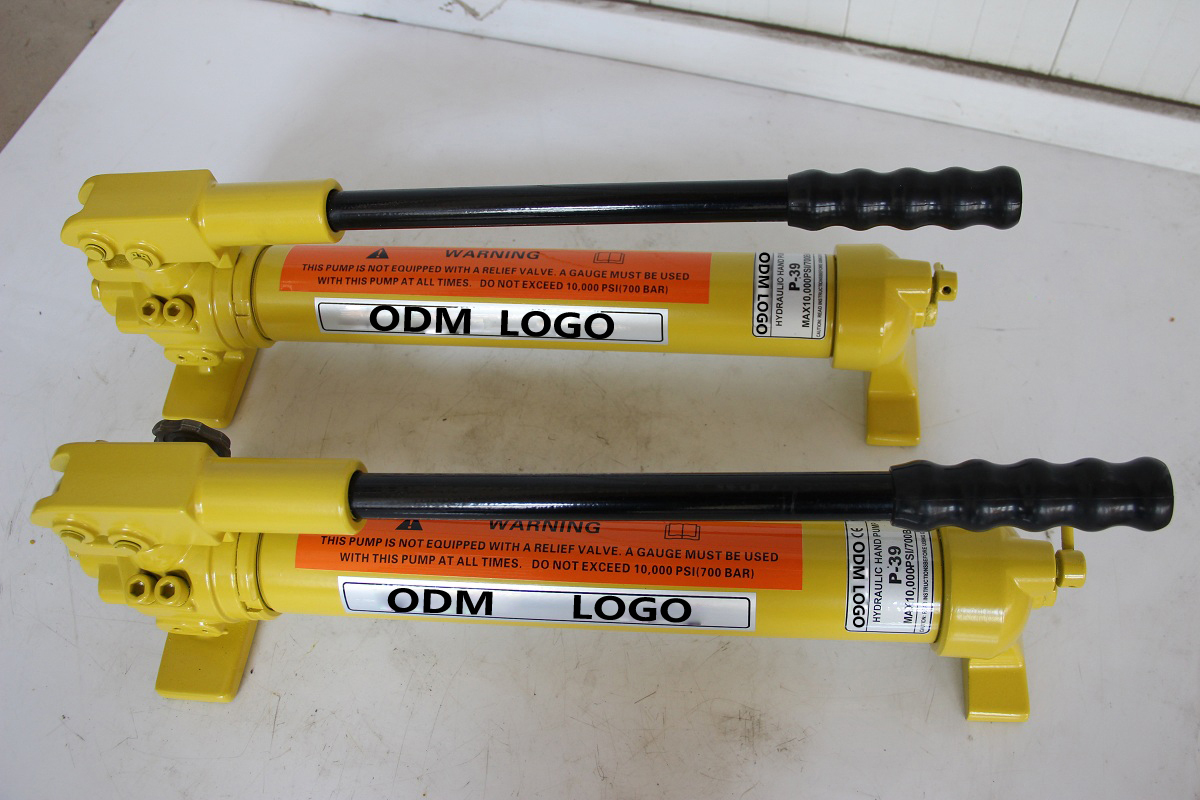

P-39

391

487

–

550

424

163

–

140

111

–

8.4

–

7.1

P-77

428

511

–

579

460

195

–

150

121

–

8.4

10.7

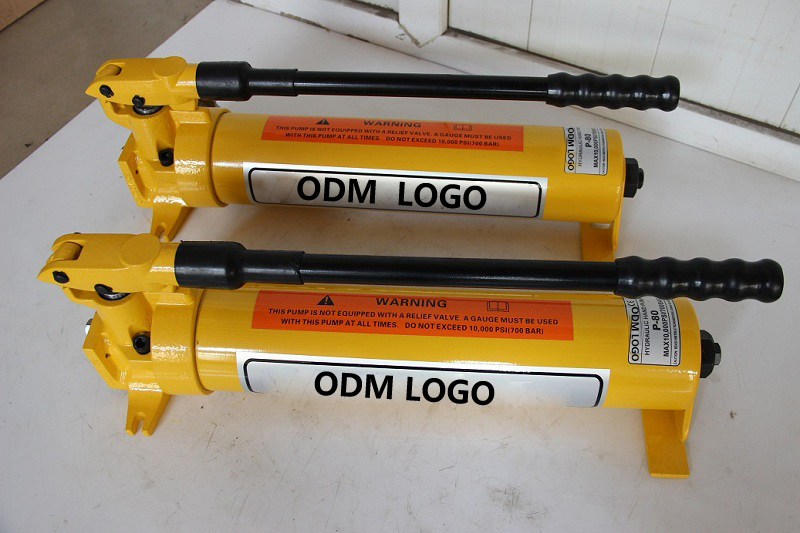

P-80 *

428

511

–

579

460

195

–

150

121

–

8.4

14.1

P-801

428

510

579

460

195

–

150

121

–

8.4

11.8

P-84

210

308

163

320

195

–

671

270

175

650

–

27.7

P-462

210

308

163

320

195

–

671

270

175

650

–

27.7

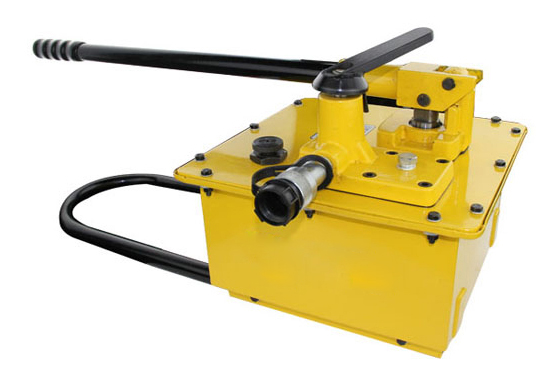

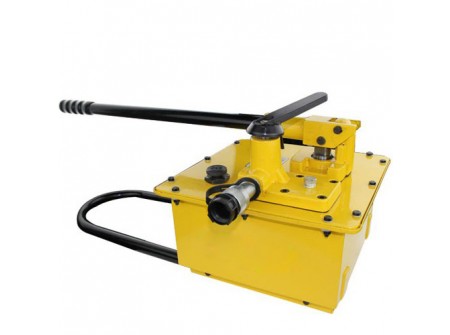

P-464

Model No.	Pump Type	Usable Oil Capacity (ml)	Working Pressure (bar)		Oil Displacement per Stroke (ml)		Max. Handle Effort (kg)	Pistion Stroke (mm)
Model No.	Pump Type	Usable Oil Capacity (ml)	1 st	2 nd	1 st	2 nd	Max. Handle Effort (kg)	Pistion Stroke (mm)
P-39	Single Spped	770	-	700	-	2.46	39	25.4
P-77	Single Spped	770	34	700	16.39	2.46	40	25.4
P-80 *	Double Speed	2200	34	700	16.39	2.46	35	25.4
P-801		4100	34	700	16.39	2.46	35	25.4
P-84		2200	34	700	16.39	2.46	35	25.4
P-462		7423	14	700	126.2	4.75	49	38.1
P-464		7423	14	700	126.2	4.75	49	38.1
